ROTATING HYDROKINETIC HEAD FOR WASHING TANKS PA A80R

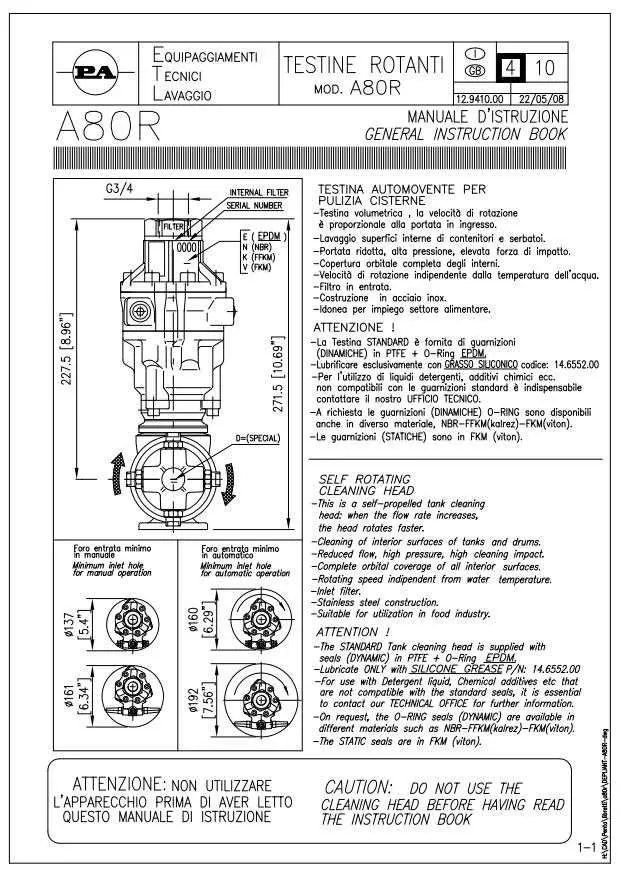

PA A80R - Rotating head
Tank cleaning
Also available in ATEX version

Self -propelled hydrokinetic rotating head for tank washing with high flow rate (up to 120 liters per minute): these are very sophisticated devices for the automatic washing of tanks and process equipment in the pharmaceutical, food and chemical industries.

Stainless steel head - Suitable for the HACCP food sector.

See A80R PA Rotating Head Demonstration Video

The movement of the rotating head is obtained through the washing fluid which sets a turbine in rotation.

The turbine moves a gear reducer which reduces the revolutions and increases the drive torque to ensure the right rotation speed and smooth operation without hesitation.

The accurate design allows to program the repetition of the washing jet steps on the internal wall according to a well-defined matrix, guaranteeing the complete washing of the tank.

Functional characteristics

The Rotating Head is built to work with water up to 90 ° C, even in the presence of general purpose detergents or disinfectants.

The rotating HEAD must be connected to a pressure circuit, generally pressure washers and the like, equipped with all safety and control devices (such as safety valves, regulation valves, etc.)

The HEAD must be firmly anchored to the mouth of the tank or to a special support, the nozzles must be located in the center of the tank and equidistant from the walls if possible.

The high pressure washing nozzles with straight jet must be suitable for the flow rate and pressure at which you intend to operate.

The liquid sent from the system to the head must be filtered to prevent foreign bodies from entering, causing malfunction and consequently more frequent maintenance interventions.

MAINTENANCE: after normal use, wash the head inside by feeding it with clean water without additives.
