ROTATING HEAD FOR BARRIQUE WASHING WITH SUCTION

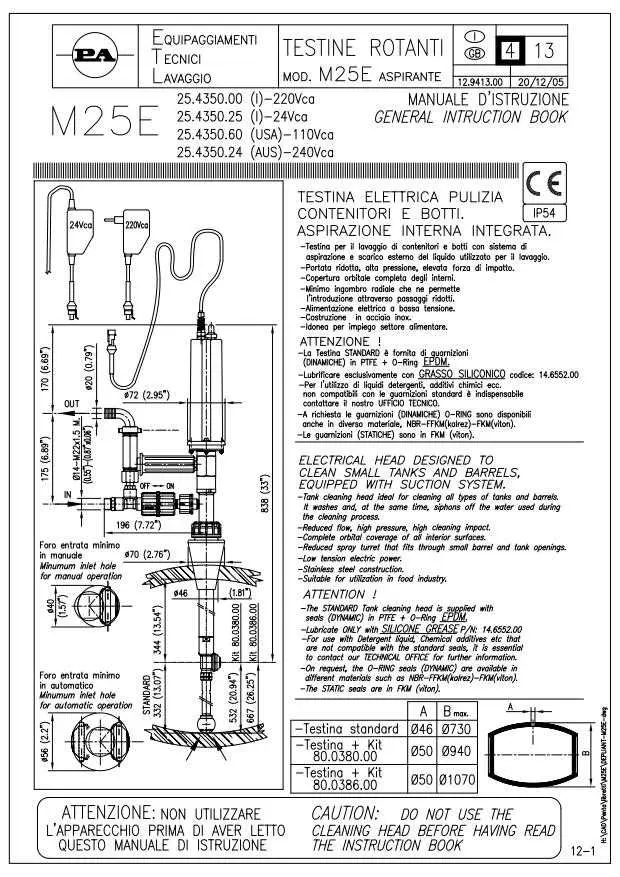

PA M25E - Rotating Head with Suction

Rotating head for cleaning barrels, barriques, tanks and other containers with limited access.
It is the most sophisticated class of washing devices, where high impact jets move slowly with a combined movement and rotate around a vertical and a horizontal axis.
The mechanism is designed so that the pressure jets cover different paths at each turn, so as not to leave any part of the surface to be washed untreated.

Features

The Rotating Head with Suction is built to work with water up to 90 ° C, with the addition of detergents or disinfectants of general use; it must be connected to a pressure circuit, generally high-pressure cleaners and the like, equipped with all safety and control devices (such as safety valves, regulation valves, etc.)

The head must be firmly anchored to the mouth of the tank or to a special support, the nozzles must be located if possible in the center of the tank and equidistant from the walls. The high pressure washing nozzles (two in number) with straight jet must be suitable for the flow rate and pressure at which it is intended to operate.

The head is rotated by the electric motor reducer at the top, powered at low voltage (12V) for total safety. The liquid sent from the system to the head must be filtered to prevent foreign bodies from entering, which would cause malfunction and consequently more frequent maintenance interventions.

MAINTENANCE: after use, wash the head inside by feeding it with clean water without additives.

Versions Available

• 730 mm (rigid) - 230V
• 730 mm (rigid) - 24V
• 680 mm (rigid) - 230V
• 680 mm (flexible) - 230V
• 680 mm (flexible) - 24V
