Lavor SWL 700 ET Court Deluxe
Cleaning Sweeper
Tennis and Padel Courts

Lavor SWL 700 - Walk-behind manual sweeper - Battery and petrol versions

The Lavor SWL 700 ET Court Deluxe is a battery-powered walk-behind sweeper designed to ensure the cleaning and maintenance of synthetic sports fields , such as padel and tennis courts, and other multipurpose sports spaces.

With an hourly output of 2620 m²/h and a working width of 68 cm , this machine is synonymous with efficiency and practicality, allowing rapid operations on both indoor and outdoor fields .

Technical specifications

SWL 700 ET Court Deluxe is powered by a 12V battery and a 400W motor , offering continuous and reliable operation. The central brush has a width of 51 cm , while the total cleaning width reaches 68 cm , allowing effective surface coverage.

The collection container has a capacity of 45 L and allows easy emptying. The forward speed is 4 km/h , supported by a mechanical forward system and a brush pressure regulation system .

The machine is equipped with a filter surface of 2 m² , which ensures excellent dust filtration thanks to the integrated electric filter shaker. The suction system is equipped with an off switch for customized management of operations.

Functional specifications

Central brush with soft bristles

The 51 cm wide central brush ensures the collection of coarse dirt and ball fluff, keeping the synthetic grass fibres neatly in place . This function, together with the brush pressure adjustment system and the quick release , preserves the integrity of the pitch and ensures uniform cleaning.

Collection tank with micro holes

The innovative collection tray with micro holes allows for uniform redistribution of sand, retaining dust and debris . This feature is essential for keeping the playing surface safe and hygienic, improving the gaming experience. The container is easily replaceable with a standard model for greater versatility.

Side brush

The side brush allows you to effectively collect and distribute sand even at the edges of the field, ensuring complete cleaning without leaving accumulations. The side brush lifting lever facilitates the operation when necessary.

Battery powered

SWL 700 ET Court Deluxe is powered by a low-maintenance gel battery , making it ideal for both indoor and outdoor use . The integrated on-board charger allows for simple and immediate charging, making the machine always ready for use.

Versatility of the collection container

By replacing the micro-perforated drawer with the standard container, the sweeper can be used to clean other areas of sports centers, such as driveways , parking lots and interior spaces , tackling even the most difficult dirt conditions. The non-marking side flaps and the anti-static device ensure effective and safe operation even in different environments.

Reclining handle and sturdy frame

The reclining handle allows for easy maneuverability even in the tightest spaces, while the self-supporting steel frame ensures long-lasting durability and sturdiness.

Flap lifting system and adjustable suction

The flap lift system allows you to handle large debris, while the suction selection switch allows for precise control during cleaning operations.

Characteristics

• Walk-behind sweeper
• Battery Powered 24V 400W
• Working width 510 mm
• Hourly output 2620 m²/h
• 45 L collection container
• Forward speed 4 km/h
• Mechanical advancement
• Electric filter shaker
• Filtering surface 2 m2
• Central brush with soft bristles
• Collection tank with micro holes for sand redistribution
• Central brush pressure regulation system
• Flap lifting system
• Self-supporting steel frame
• Reclining handle
• Anti-static device
• Non-marking side flaps

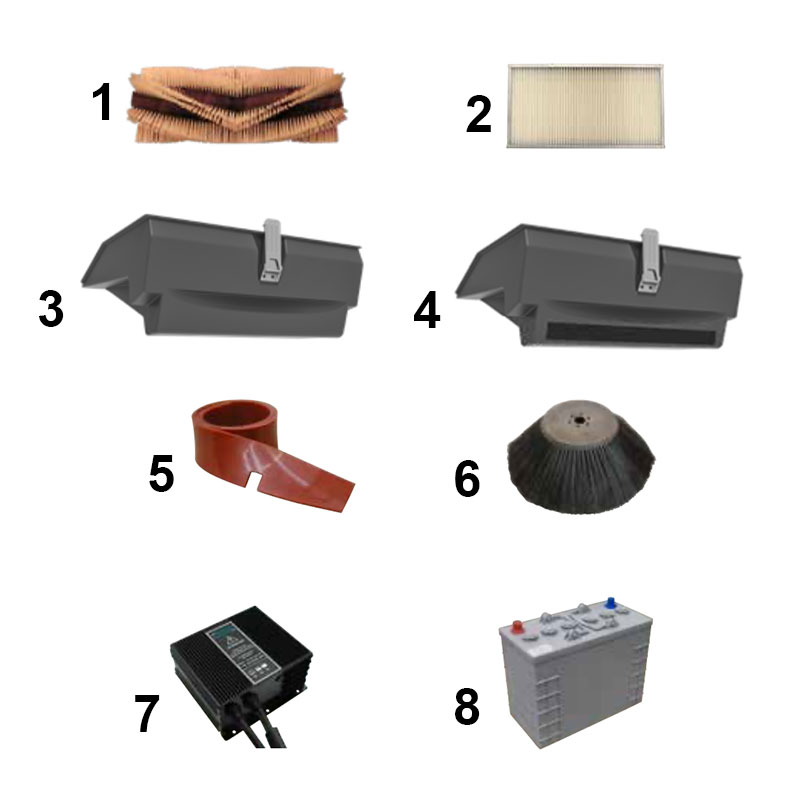

Standard Equipment

• Central brush soft bristles - cod. 00080-05196
• Paper panel filter 14 micron - code 00070-00427
• Closed collection drawer without micro-holes - code 00054-01369
• Collection drawer with micro holes - code 00054-01632
• Non-marking side flap - code 00005-02532
• PP side brush - 00080-04124
• Battery charger 12V 13A 220-240/50-60 - code 00056-00088
• Gel battery 12V 105Ah C5 low maintenance - cod. 00055-00130
