Telwin Superior Tig 251 DC
Direct Current Inverter Welding Machine
Cod. 816116

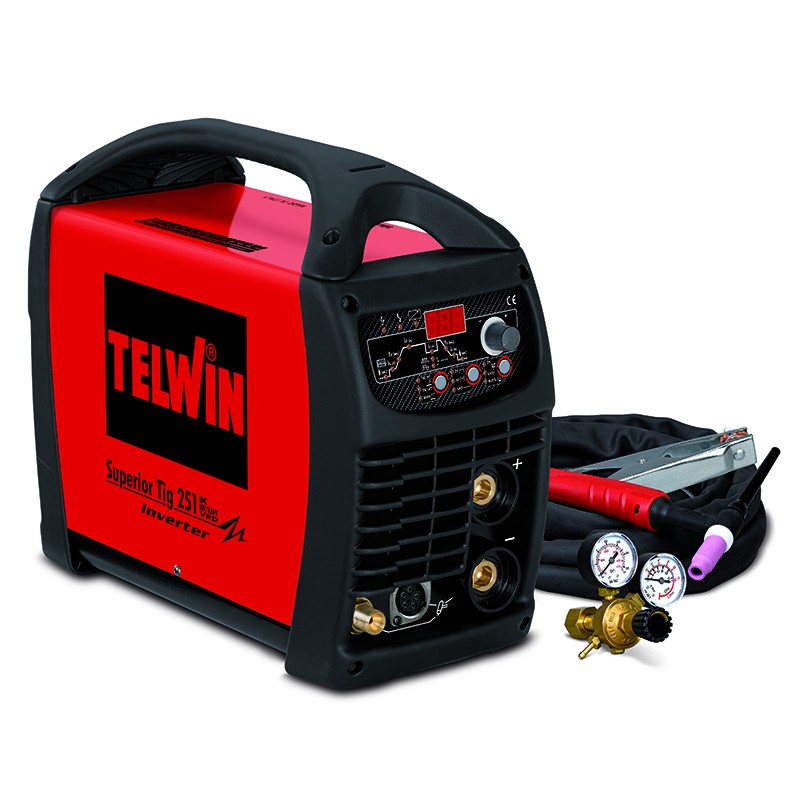

Telwin Superior Tig 251 DC HF/LIFT VRD - Direct Current Inverter Welding Machine

Telwin Superior Tig 251 DC HF/LIFT VRD is a TIG (high frequency HF or LIFT striking), PULSED TIG and MMA inverter welding machine in direct current ( DC), microprocessor controlled, ideal for use with different types of materials such as stainless steel, titanium, copper, nickel and alloys .

The Telwin Superior Tig 251 DC HF/LIFT VRD welding machine offers pulsed and EASY pulsed operation and practical TIG adjustments :

• Bi-level
• Initial/final current
• Pointing time
• Post gas
• Pre-gas
• Current up and down ramp
• Balance DC
• Square wave frequency

This Superior Tig 251 DC HF/LIFT VRD welding machine model features Utility Thinspot for fast and precise spot welding , but also MMA adjustments such as Arc Force and Hot Start , and is also equipped with an Anti-Stick and VRD device.

The welding machine is predisposed for remote control and GRA cooling unit and is complete with accessories for TIG welding .

TYPES OF WELDING POSSIBLE WITH Telwin Superior Tig 251 DC HF/LIFT VRD

• MMA : also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.
• TIG : TIG welding requires a lower voltage and therefore absorbs less, it becomes cheaper and is aesthetically the most beautiful. TIG welding has a so-called coin shape due to the circular shapes it produces and is more resistant therefore it is usually used in visible elements and on processes that require precision.

Telwin Superior Tig 251 DC HF/LIFT VRD Protections

• Thermostatic
• Overvoltage
• Undervoltage
• Overcurrent
• Cooling group

Fields of application

• Professional

Characteristics

• Pulsed and easy pulsed operation
• TIG Adjustments
• Thinspot Utility
• Arc Force and Hot Start (MMA)
• Anti-Stick Device
• VRD Device

Standard equipment

Supplied with TIG ST26 welding kit code 852054. Contains:

• Argon cylinder adapter IT - cod. 432036
• Toledo 300 ground clamp - code 712231
• Cable 25 mmq 3 m Atlas 50mmq - code 713504
• Pressure reducer 2 manometers 12 L/min - code 722119
• ST26 4M AX50 5P TIG torch - cod. 742614
