Lavor L1 36E
Floor scrubber dryer

Lavor L1 36E - Surface Scrubber Dryer for Offices, Schools, and Restaurants

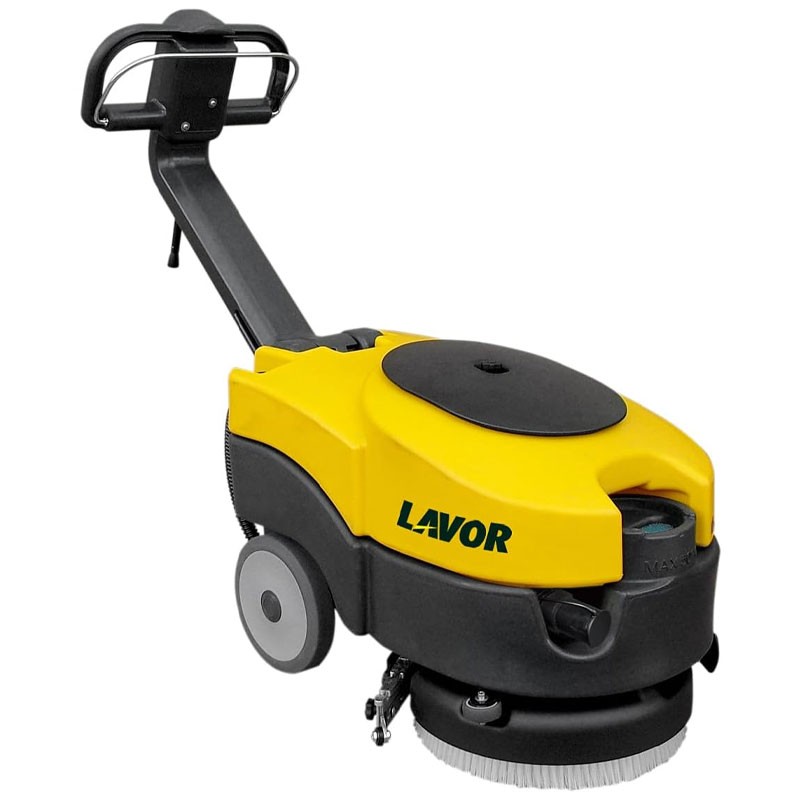

The Lavor L1 36E walk-behind floor cleaner is a professional machine manufactured in Italy , designed to guarantee perfect cleaning in indoor environments such as schools , offices, shops and restaurants , even reaching 90° angles .
Created with a resistant structure that includes shock-absorbing hoods , non-marking wheels and mechanical parts that can be easily inspected for maintenance, Lavor L1 36E, despite its weight of 49 kg , is an extremely easy to handle and transportable machine .

The reclining handle has been designed to adapt to the height of any operator. The ease of maneuverability , silence , and lightness of the Lavor L1 36E make it suitable for work even when the premises being cleaned are open to the public .

Rotating brush for deep cleaning

The rotating brush is one of the strong points of this Lavor L1 36E: with a circular motion , it is possible to degrease away even the most stubborn dirt , managing to penetrate even under tables and shelves and in the areas closest to corners .

Effective even with water alone , this Lavor washer-dryer reaches its peak performance when combined with a detergent . With two tanks , one for the 11 L detergent and the other for water recovery, 13 L , the Lavor L1 36E is ready to set off towards excellent cleaning results. The exclusive Squeegee lifting system allows the user to lift the machine with the lever on the back.

The automatic start-stop system , controlled by a solenoid valve , allows you to adjust the flow of the solution based on the type of surface being treated and the type of dirt to be removed.

The controls of Lavor L1 36E

The Lavor L1 36E controls are clearly visible to the user, as they are located on the reclining handle . Simple to understand, they include:

• Rotating brush action control
• Action suction process
• Handlebar adjustment mechanism
• Squeegee Lift Lever
• Detail of the single-phase lifting pin

Technical specifications

Now that we have explained the operation and strengths of this professional Lavor floor cleaner, we will briefly describe some technical specifications. This machine is electrically connected to a single-phase 230V power supply, with a motor power of 400W . The rotating brush has a power of 370W , with a rotation speed of 130 RPM , for a maximum cleaning surface of 460 mm .

The hourly output of this machine , suitable for cleaning public and automotive environments , is 1260 m²/h . Self-propelled , this scrubber dryer with non-marking wheels has dimensions of 46 x 85 x 105 cm and weighs 56 kg .

Applications and uses

• Automotive sector (car washes, car showrooms, car rentals, petrol stations, workshops, auto electricians and body shops)
• Public sector (schools, universities, kindergartens and libraries, canteens and kitchens, gyms and sports facilities, churches, municipalities, stations, barracks)

Characteristics

• Ideal for cleaning small spaces such as shops, offices, kitchens, schools, hospitals, bars, gyms, restaurants
• Replaces normal manual cleaning systems.
• Adjustable detergent flow (automatic start-stop controlled by a solenoid valve) depending on the type of dirt and floor
• Quick brush release
• Removable recovery tank
• Squeegee lifting lever

Standard equipment

• PPL brush 36 mm - 14 mm
• Squeegee front blade L.537 mm - TH. 2.5mm
• Sqeegee rear blade L.590 - 3 mm thick

Optional Equipment - On Request

1. 00005-02257 Front blade in polyurethane L.537 TH. 2 / 00005-02258 Rear blade in polyurethane L.590 TH. 2.5
2. 10002-08104 Tynex brush Ø 360 mm-14" / 10002-08105 PP brush 0.3 Ø 360 mm-14" / 10002-08106 PES brush Ø 360 mm-14"
3. 10002-08107 EWU drive disc Ø 360mm-14"
4. Abrasive disc of different hardness beige, green, black
5. 00058-02618 15 m extension cable with Schuko socket
