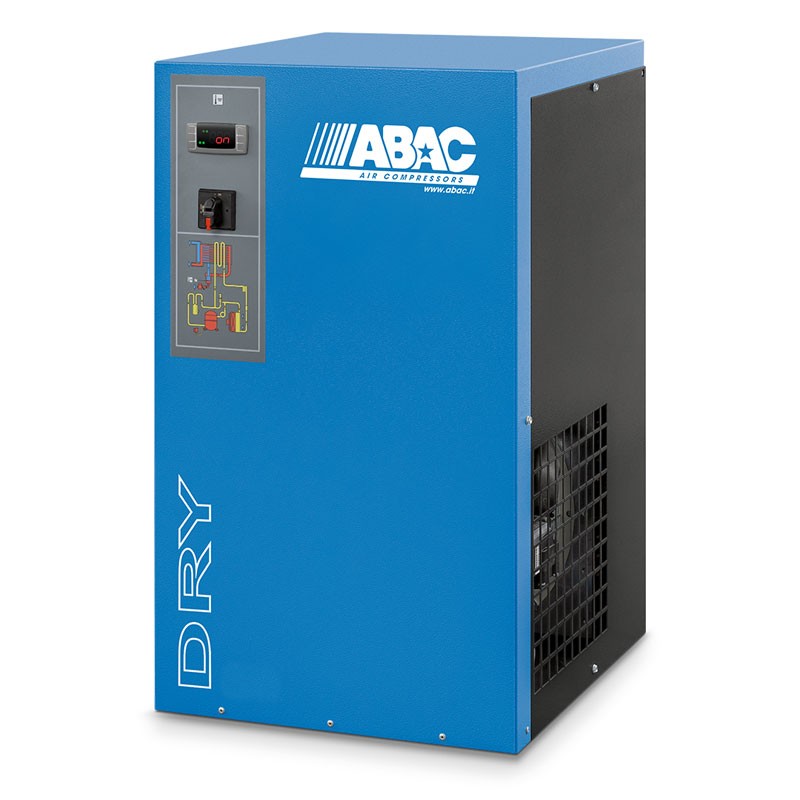

ABAC DRY 165 ÷ 360
Compressed Air Dryer

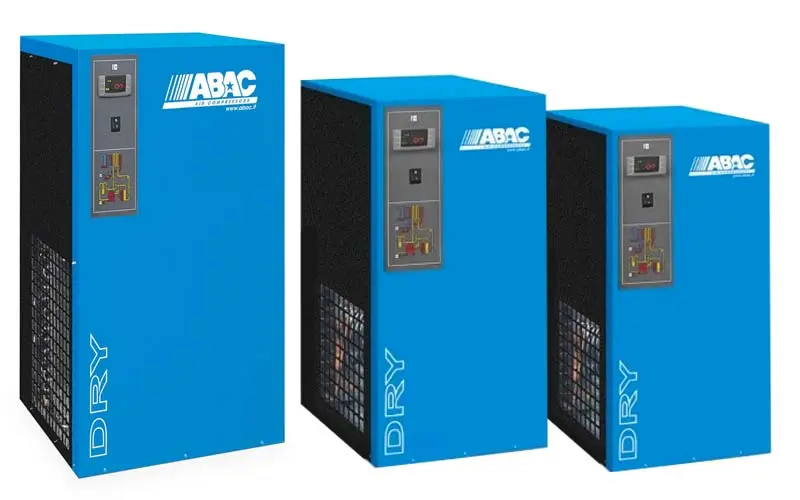

ABAC DRY versions from DRY 165 to DRY 360 - Compressed Air Dryer

ABAC DRY are compressed air dryers available here in the DRY 165, DRY 210, DRY 250, DRY 290, DRY 360 versions. These air dryers use a refrigerant gas to cool the compressed air, thus condensing the water present in the air and eliminating it. This refrigeration technology is the most widely used in over 95% of industrial applications .

The ABAC DRY 165÷360 series allows you to reach a pressure dew point of 5°C . Refrigerant dryers are commonly used in pneumatic and general industrial applications such as engineering, steel, paper, tanneries, garages.

The ABAC DRY 165÷360 range of dryers offers reliable components in a simple, space-saving vertical arrangement .

Main Features of the ABAC DRY 165÷360 Dryers

• Intelligent and silent condensate drain
• Easy dew point reading with digital display
• Maintaining constant efficiency
• For general pneumatic and industrial applications
• Refrigeration dryer
• Simple installation and easy to use
• Easy access for quick and cost-effective maintenance
• longer life and efficiency of the tools and equipment used
• Efficient cooling system
• Transport flexibility
• Small footprint
• Stable dew point
• Elimination of water/dust produced during the compression process
• Clean and rust-free compressed air network
• Reduce losses with clean compressed air
• Longer life of operating tools (machinery and equipment)
• Safe use and longer life of pneumatic tools
• Reduced maintenance costs for the compressed air network
• Improving the quality of the final product
• Stable control of operating costs
• Increased productivity
• Compressed air network pipes cannot freeze

FUNCTIONAL SPECIFICATIONS

Components of the ABAC DRY 165÷360 Compressed Air Dryers

• Refrigerant compressor driven by an electric motor, cooled by the refrigerant itself and protected against thermal overload.
• Air-cooled refrigerant condenser with a large surface area for high heat exchange.
• IP54 fan motor for condenser cooling airflow
• Air-refrigerant evaporator with high heat exchange and low losses
• High efficiency condensate separator
• Air-to-air heat exchanger with high heat exchange and low pressure drops
• Refrigerant separator
• Maximum pressure switch
• Service valve
• Fan control pressure switch
• The hot gas bypass valve regulates the cooling capacity under all load conditions, preventing ice formation within the system.
• Coolant filter
• Capillary Tube
• Service valve
• Tools Panel
• Impurity collection filter to protect the system
• Eco-friendly automatic condensate drain, able to avoid involuntary discharge of compressed air

Terms of Use

• Operating Pressure: 16 bar
• Operating Temperature: 55° C
• Min/max ambient temperature: +5° C; +45° C

Why use an Abac dryer

To ensure greater durability and efficiency of the tools and equipment used with air compressors , Abac has developed a range of solutions to transform compressed air from the point of generation to the point of use into high-quality air . Abac manufactures refrigerated compressed air dryers that ensure high quality air , thus avoiding potentially costly production downtime and increasing the efficiency and lifespan of production equipment. Abac compressed air dryers are therefore a highly recommended investment for any type of business .

A compressor removes moisture and contaminants from the intake air, which, during the compression process, combine with the compressor's used oil. All these impurities can cause wear and corrosion of downstream equipment, resulting in potentially costly production downtime and a reduction in the efficiency and lifespan of the equipment used. To limit these negative effects, Abac has developed a complete range of compressed air dryers that ensure quality air and improve the efficiency, productivity, and lifespan of the tools and equipment used .
