Speroni SNG-D 230V
Stainless Steel Submersible Electric Pumps
Single Phase from 0.75 to 2 HP
230 V - 0.75÷2 HP
450 L/min - Prevalence 2÷20 m
DN 1'' 1/2
Warranty 2 years
14 days to change your mind

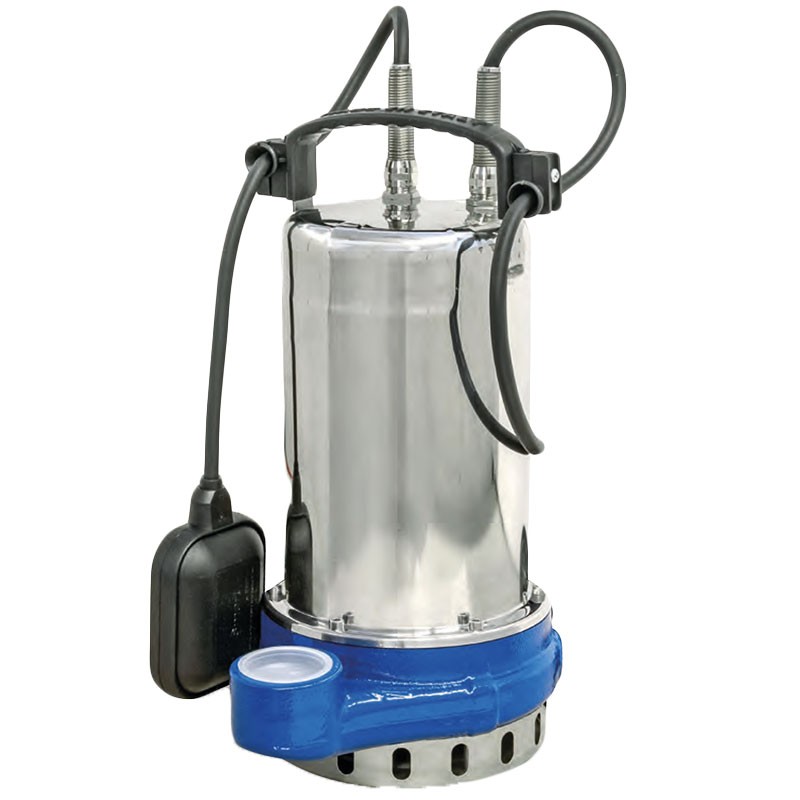

Speroni SNG-D Single Phase 230V Models - Stainless Steel Submersible Electric Pumps from 0.75 to 2 HP
Speroni SNG-D portable, automatic stainless steel submersible electric pumps for drainage used for draining seepage water, emptying flooded rooms or tanks, for draining both clean and slightly dirty waste water and for irrigating vegetable gardens and gardens.
The Speroni SNG-D models available here are Single-phase 230V (50Hz) , with class F insulation and IP 68 protection in oil bath for cooling and bearing lubrication. The water flow rate is max. 450 L/min with a head from 16 to 20 m based on the selected model.
Available models
- SNG 750-DS - 0.75 HP 0.55 kW 230 V
- SNG 1000-DS - 1.00 HP 0.75 kW 230 V
- SNG 1100A-DS - 1.10 HP 0.80 kW 230 V
- SNG 1100B-DS - 1.10 HP 0.80 kW 230 V
- SNG 1500-DS - 1.50 HP 1.10 kW 230 V
- SNG 2000-DS - 2.00 HP 1.50 kW 230 V
Also available on our website are the 1.5 HP and 2 HP three-phase 400V models.
Usage limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 35°C (for other uses)
- Maximum diving depth 10 m.
- Min. suction level 40 mm
- Continuous service
Motor
- Single phase 230V-50Hz (with float)
- Three phase 400V-50Hz
- Double chamber with oil bath motor for cooling and bearing lubrication
- Permanent capacitor inserted
- Insulation Class F
- IP 68 protection
Materials
- Handle: AISI 304 Stainless Steel
- Motor case: AISI 304 stainless steel
- Pump body: Cast iron
- Impeller: Technopolymer
- Suction grille: AISI 304 stainless steel
- Crankshaft: AISI 304 Stainless Steel
- Mechanical seal: Silicon/Silicon/NBR
Hydraulic Curve
Product Dimensions
Dati Tecnici
| Modello | SNG 750-DS | SNG 1000-DS | SNG 1100A-DS | SNG 1100B-DS | SNG 1500-DS | SNG 2000-DS |
| Codice | 101298800 | 101298810 | 101298830 | 101298690 | 101298840 | 101298850 |
| Alimentazione | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V |
| Potenza Nominale | 0,75 HP (0,55 kW) | 1 HP ( 0,75 kW) | 1,1 HP (0,8 kW) | 1,1 HP (0,8 kW) | 1,5 HP (1,1 kW) | 2 HP (1,5 kW) |
| Diametro Mandata | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 |
| Prevalenza min | 2 m | 2 m | 1 m | 1,5 m | 1 m | 2,5 m |
| Prevalenza max | 12 m | 14 m | 16 m | 13 m | 18 m | 20 m |
| Portata Liquido | 350 L/min | 350 L/min | 450 L/min | 450 L/min | 450 L/min | 450 L/min |
| Classe Protezione - Isolamento | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F |
| Dimensioni con imballo | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm |
| Peso | 12 kg | 12,5 kg | 13 kg | 13 kg | 14 kg | 14,5 kg |
Dati Tecnici
| Modello | SNG 750-DS | SNG 1000-DS | SNG 1100A-DS | SNG 1100B-DS | SNG 1500-DS | SNG 2000-DS |
| Codice | 101298800 | 101298810 | 101298830 | 101298690 | 101298840 | 101298850 |
| Alimentazione | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V |
| Potenza Nominale | 0,75 HP (0,55 kW) | 1 HP ( 0,75 kW) | 1,1 HP (0,8 kW) | 1,1 HP (0,8 kW) | 1,5 HP (1,1 kW) | 2 HP (1,5 kW) |
| Diametro Mandata | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 | DNM 1’’ 1/2 |
| Prevalenza min | 2 m | 2 m | 1 m | 1,5 m | 1 m | 2,5 m |
| Prevalenza max | 12 m | 14 m | 16 m | 13 m | 18 m | 20 m |
| Portata Liquido | 350 L/min | 350 L/min | 450 L/min | 450 L/min | 450 L/min | 450 L/min |
| Classe Protezione - Isolamento | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F | IP 68 - F |
| Dimensioni con imballo | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm | 19,7 x 22,7 x 44,1h cm |
| Peso | 12 kg | 12,5 kg | 13 kg | 13 kg | 14 kg | 14,5 kg |
