Lavor Boiler
For Professional High Pressure Washer

Lavor Boiler - Boiler for High Pressure Washer

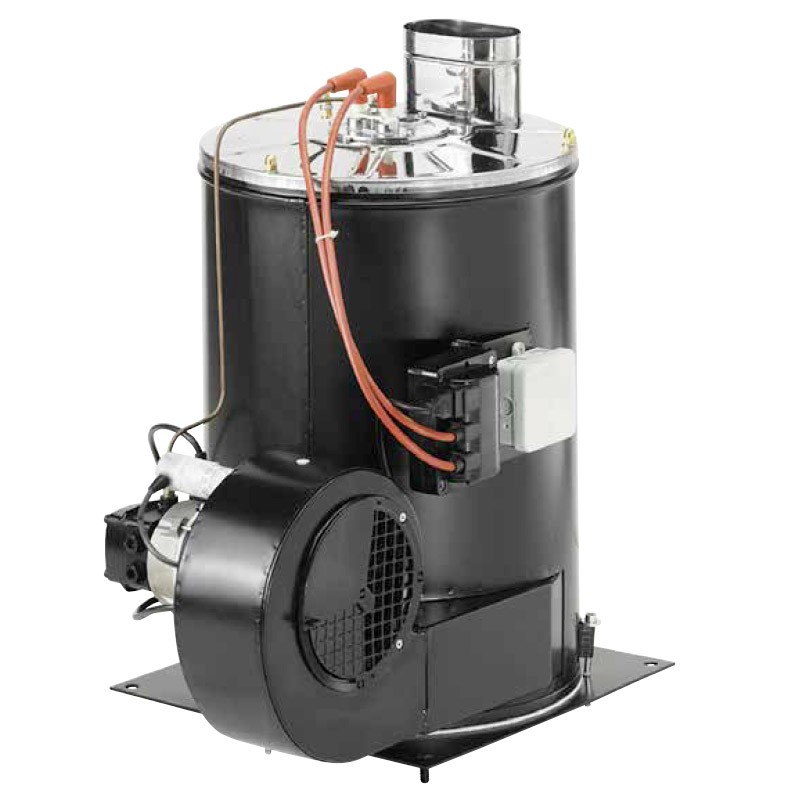

The Lavor boiler is an advanced device designed for use with high pressure washers, ideal for professional applications requiring high performance and reliability. This Lavor boiler is available in three distinct models: Top , Bassa and Alta , each of which is optimized for different operational needs, whilst maintaining common characteristics of robustness and efficiency.

Models available

Selectable from the drop-down menu:

• Top - cod. 38002-00010
• Low - cod. 38002-00001
• High - cod. 38002-00002

Lavor TOP boiler

The Top model cod. 38002-00010 , is designed to offer a maximum pressure of 200 bar (2900 psi or 20 MPa) with a flow rate of 12 L/min (3.17 GPM). This boiler requires an electrical power of 300W and works with a 230V ~ 50Hz power supply. It generates thermal energy of 49,000 Kcal/h , ensuring rapid and efficient heating of water. With a length of 20 cm and dimensions of 40.5 cm in height and 51 cm in width , this model is compact and easily integrated into different work configurations. The weight of 38 kg makes it easy to handle without compromising stability.

Low working boiler

The Lavor Low boiler model, cod. 38002-00001 , shares the same maximum pressure of 200 bar (2900 psi or 20 MPa) but increases the flow rate to 15 L/min (3.96 GPM). The required power remains 300 W with the same 230V ~ 50Hz power supply. The thermal capacity is increased to 63,000 Kcal/h , making this model ideal for applications that require a greater volume of hot water. The length of the boiler is 29.5 cm , with dimensions of 46.5 cm in height and 56.5 cm in width . The weight is slightly higher at 48.5 kg , offering greater stability during intensive use .

Lavor HIGH boiler

The Lavor Alta boiler model, cod. 38002-00002 , is the most powerful in the range, maintaining a maximum pressure of 200 bar but with an exceptional flow rate of 21 L/min. This model also requires 300W of power and a 230V ~ 50Hz power supply. With a thermal capacity of 63,000 Kcal/h , it is suitable for operations that require large quantities of hot water in a short time. The length is 36.5 cm, with dimensions of 60 cm in height and 69 cm in width , making it the largest of the three models. Weighing 54kg , it is stable and robust, perfect for demanding work environments.

Characteristics

• Complete boiler for pressure washer
• Original Work
• Wing pressure 200 bar
• Thermal energy 49000÷63000 Kcal/h
• Weight 38÷54 kg
