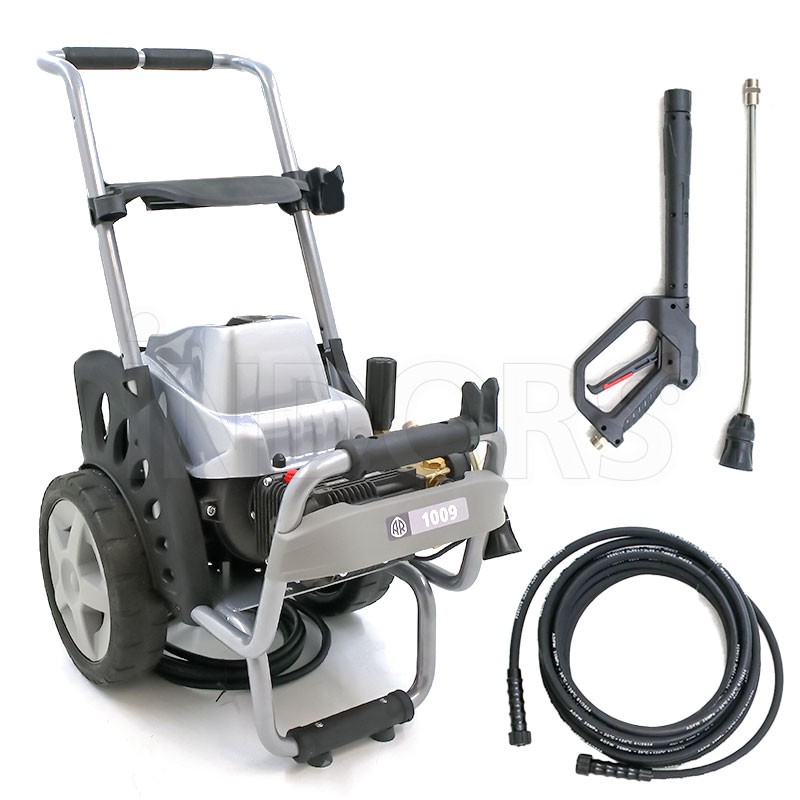

Annovi Reverberi 1009 - High Pressure Cold Water Pressure Washer
The Annovi 1009 pressure washer , code 15590 , part of the 10 series, is a powerful and versatile pressure washer designed to meet the most demanding cleaning needs in professional and industrial settings. With a maximum pressure of 230 bar and a maximum flow rate of 1260 L/h, this Annovi pressure washer stands out for its ability to remove even the most stubborn dirt with extreme ease and efficiency.
Equipped with a 9.3 kW three-phase induction motor, which guarantees high and constant power. This type of motor is known for its reliability and durability, and is protected by a thermal protection system that prevents overheating , thus ensuring safe operation even during prolonged use.
Technical specifications
- Cold water
- Self-priming function
- Induction motor
- Connecting rod pump
- IPX5-S1 water resistance
- Brass head
- Total Stop System Timed
Functional specifications
Robust and portable structure
The Annovi Reverberi 1009 pressure washer is mounted on a sturdy two-wheeled metal cart , complete with handle and pressurized hose reel, making it easy to transport and maneuver even on uneven terrain . The 10-meter steel-braided hose offers remarkable freedom of movement, allowing you to easily reach the most difficult work areas.
Regulation and control for specific needs
The Annovi 1009 pressure washer offers the ability to adjust pressure to the operator's specific needs, thanks to the flanged control valve (VR) and integrated pressure gauge , which allows real-time monitoring of pressure levels. This feature is particularly useful for adapting the jet force to different surfaces and types of dirt.
High quality technical pump
The triple ceramic piston pump with connecting rod and crank system is another distinctive feature of the Annovi 1009. The ceramic pistons are extremely resistant to wear and corrosion, ensuring long operating life and reduced maintenance. The pump is also equipped with an automatic by-pass valve that eliminates pressure in the pump head , improving safety and system protection.
Numerous applications and advantages
Thanks to its power and versatility, the Annovi Reverberi 1009 pressure washer is suitable for a wide range of applications, from cleaning machinery and industrial vehicles to removing graffiti and maintaining outdoor surfaces such as patios and driveways. Its adjustable pressure and detergent usage make it ideal for even more delicate tasks, such as cleaning facades and sensitive equipment.
Total Stop System
Timed full shut-off system for safe use of the pressure washer.
Self-priming function
A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.
Characteristics
- Maximum pressure 230 bar
- Maximum flow rate 1260 litres/hour
- Power 9.3 kW
- Sturdy two-wheeled metal trolley complete with handle and pressurized hose reel
- 3-piston ceramic pump with connecting rod and crank system
- Automatic by-pass valve with zero pressure relief in the pump head
- Three-phase induction electric motor with thermal protection
- Pressure regulation with integrated pressure gauge
- Flanged control valve (VR)
- Detergent suction for the use of soaps and cleaning agents
- Reinforced hose with steel braid, length 10 metres
- Self-priming function for use without a pressurized water source
- Gun with swivel to avoid kinking the hose
- Self-priming function
FIELDS OF APPLICATION
- Livestock farming
- Craftsmanship
- Car wash
- Automotive
- Building
Standard Equipment
- Nozzle 1/4 MEG code 3090
- High Pressure Armored Hose 10 m - code 3961050
- Lance with High/Low Pressure head 56 cm (without nozzle) - code 46221
- Pistol - code 47209
