MHS TMR-HD 1800 S700
Professional Forestry Grapple
Open Forks
€4,700.00
€3,852.46 tax excl.
library_add
more options
MPN: TMR-HD 1800 S700 O
Capacity 0.40 m³
Capacity 4000 kg
For excavators 10.0÷18.0 Ton
Warranty 2 years
14 days to change your mind
Shipped on Pallet

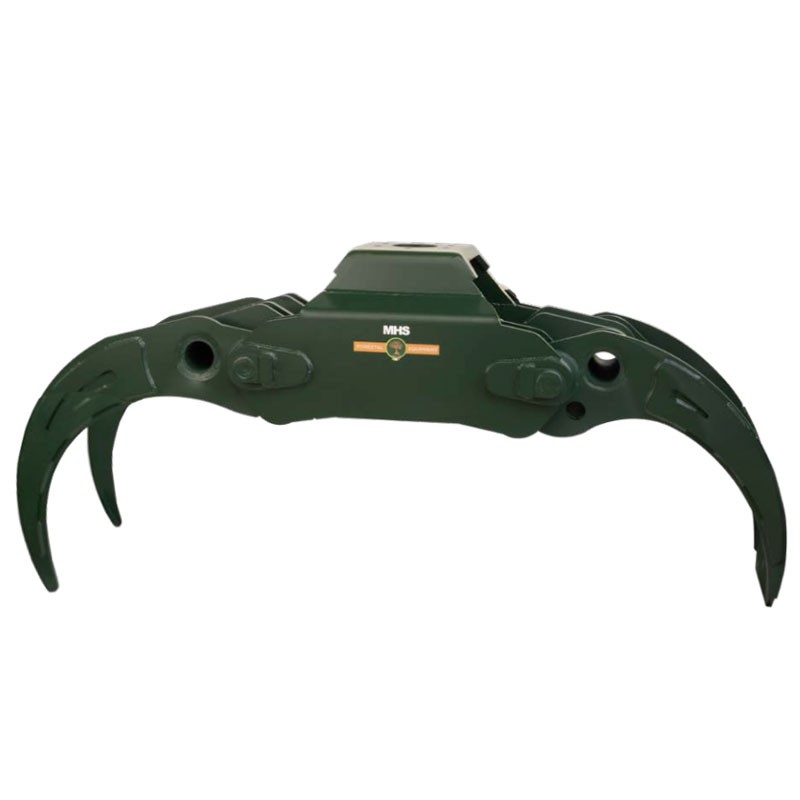

MHS TMR-HD 1800 S700 - Professional Agricultural Log and Wood Grapple - with Open Forks
The MHS TMR-HD 1800 S700 log grab is a high-quality professional tool designed for handling and loading timber. Thanks to its advanced hydraulic system , it provides a powerful and safe grip on logs and timber of various sizes , ensuring efficiency and precision in harvesting and transport.
The robust high-strength steel structure and rotation capacity allow it to tackle even the most difficult terrain, increasing productivity and safety.
This MHS hydraulic grab for forestry and agricultural operations is reliable, durable and optimizes work by reducing work times.
The open fork pliers, with DOMEX tips, ensure a secure grip and make it easier to transport logs.
The MHS hydraulic clamp is designed and produced entirely in Italy , guaranteeing quality , innovation and reliability . 100% Made in Italy , this hydraulic clamp offers excellent performance , thanks to the combination of advanced technology and Italian craftsmanship .
Technical Specifications
Professional wood grabber for agricultural and forestry use , with maximum capacity of 0.40 m³ and maximum load capacity of 4000 kg .
Designed to withstand maximum pressures of 200 bar , it offers optimum performance in heavy duty working conditions .
Structure in IMEX 700 , high-strength structural steel, guarantees solidity , durability and tensile strength .
Compatible with excavators from 10.0 to 18.0 Ton .
Dimensions in millimeters
| Model | TO | B | C | D | AND | F | G |
| TMR-HD 1400 | 660 | 1020 | 100 | 840 | 1950 | 700 | 480 |
Compatibility
| Model | Rotor and Flange (01) | Rotor Flange 4 Holes (02) | Rotor Flange 6 Holes (03) | Pipe Kit (04) | Block Valve Kit (05) | MHS Links (06) |
| TMR-HD 1400 | - | - | GR104DB GR104BX GR105DB GR16S GRS10 6 WAY GRS12S 6 WAY GRS16S 6 WAY | 300300140A/B | 300302581A/B | CDE - L terminal hole |
Characteristics
- Forestry grapple for logs and wood
- Open forks
- Capacity 0.40 m³
- Capacity 4000 kg
- Max Bar 200
- For excavators 10.0÷18.0 Ton
- Made in Italy
Technical Data
| Model | TMR-HD 1800 S700 |
| Forks | Open |
| Max capacity | 0.40 m³ |
| Max. capacity | 4000 kg |
| Bar Max | 200 bars |
| Material | IMEX 700 steel |
| For Excavators | 10.0÷18.0 Tons |
| Closed Dimension | 66 x 102 x 48 cm |
| Open Dimension | 84 x 195 x 48 cm |
| Weight | 345 kg |
Technical Data
| Model | TMR-HD 1800 S700 |
| Forks | Open |
| Max capacity | 0.40 m³ |
| Max. capacity | 4000 kg |
| Bar Max | 200 bars |
| Material | IMEX 700 steel |
| For Excavators | 10.0÷18.0 Tons |
| Closed Dimension | 66 x 102 x 48 cm |
| Open Dimension | 84 x 195 x 48 cm |
| Weight | 345 kg |
