CGM CX5000
Honda Petrol Engine Generator

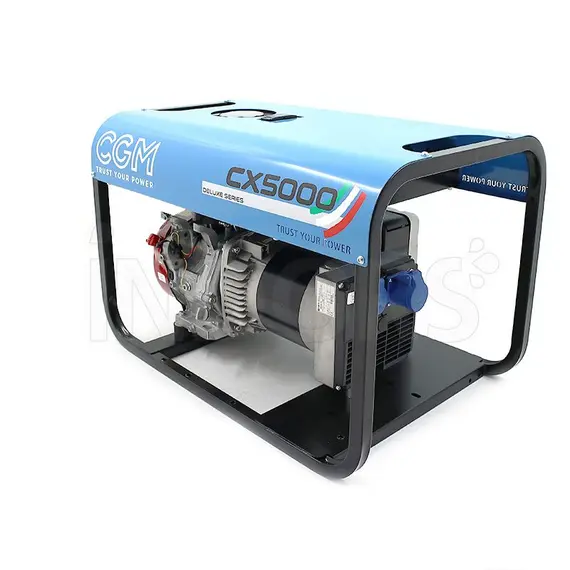

CGM CX5000 - Honda Petrol Engine Generator 5.5 kW

The CGM CX5000 is a petrol -powered generator set that is part of the Deluxe series, equipped with a powerful Honda engine , stands out for its lightweight, compact design and the use of resistant materials .

The generator is mounted on a fixed base with anti-vibration pads , making it suitable for a wide range of uses , including powering homes , mobile systems, camping , hobby activities, construction sites , and so on.

TECHNICAL SPECIFICATIONS

The CGM CX5000 generator is a single-phase generator with an electrical system (1F+N) that can provide a continuous power of 5 kW and an emergency power of 5.5 kW .

The generator is equipped with a LINZ ELECTRIC - NSM Made in Italy alternator, which is of the self-excited type and uses brushes for power generation.

Voltage regulation is managed by an AVR ( Automatic Voltage Regulator ) which allows maintaining a voltage precision of ± 2%, the output voltage of the generator is 230V , while the nominal amperage is 24 A.

The power factor is indicated as 0.9 ϕ , which means that the generator can provide an active power (kW) equal to 90% of the apparent power (kVA), in other words, the generator is capable of providing an 90% energy efficiency.

HONDA GX270 ENGINE

The CGM CX5000 power generator features a Honda GX270 engine that complies with STAGE V emissions regulations. The engine has a displacement of 270 cc and is started manually using a recoil starter system.

The engine power is 6.2 HP (4.6 kW ) at 3000 RPM and is composed of a single cylinder, uses gasoline as fuel.

Fuel consumption is 1.6 L/h at 75% load , furthermore the tank has a capacity of 15 L , which allows for excellent operating autonomy.

MANUAL ELECTRICAL PANEL

The manual electrical panel of the CGM CX5000 power generator includes the following elements:

• A 230V Schuko socket:
  This socket is a type of electrical socket commonly used in Europe to supply power to home and office devices, it has a nominal voltage of 230V.
• One CEE 16A 3P 230V socket:
  This socket is a standard industrial socket that follows EEC (International Electrotechnical Commission) specifications.
  It has a rated current of 16A and a rated voltage of 230V, designed for industrial or commercial applications requiring higher power.
• Thermal protection :
  The thermal protection is a safety device located in the electrical panel of the current generator, it has the function of protecting the generator from overloads and short circuits.
  When excessive current or an anomaly is detected in the electrical system, the circuit breaker activates and cuts off the power to prevent damage to the generator and connected appliances.

These components in the electrical panel allow you to connect electrical devices of different types and provide them with the necessary power, while ensuring the protection of the generator itself.

FIELDS OF APPLICATION

• Housing
• Mobile installations
• Campsites
• Hobbies
• Construction sites

CHARACTERISTICS

• Type of electrical system 1F+N
• Power factor 0.9 ϕ
• Voltage 230V
• Rated amperage 24A
• LINZ ELECTRIC – NSM alternator
• Self-excited type with brushes
• Voltage accuracy ± 2 %
• Continuous power 5 kVA (4.5 kW)
• Emergency power 5.5 kVA (4.95 kW)
• Honda GX270 engine
• STAGE V emissions regulations
• Displacement 270 cc
• Pull start system
• Engine power 6.2 HP (4.6 kW)
• 3000RPM
• Number of cylinders 1
• Fuel type petrol
• Autonomy 9.4 hours
• Consumption 1.6 L/h @ 75%
• Tank capacity 15 L
• Autonomy 9.4 hours
• Base in epoxy powder coated steel
• Rain protection
• Larger tank for greater autonomy
• Anti-vibration rubbers
• First filling liquids
• Electronic Voltage Regulator ( AVR )
• Weight 66 kg
• Dimensions 82.5 x 55 xh 53 cm
