GenSet LT 5500 SY-L
Silent Generator Light Tower
MPN: LT 5500 SY-L
230V - 5.3 kW (kVA)
7.9 HP
DIESEL
Warranty 2
years
Shipped on Pallet

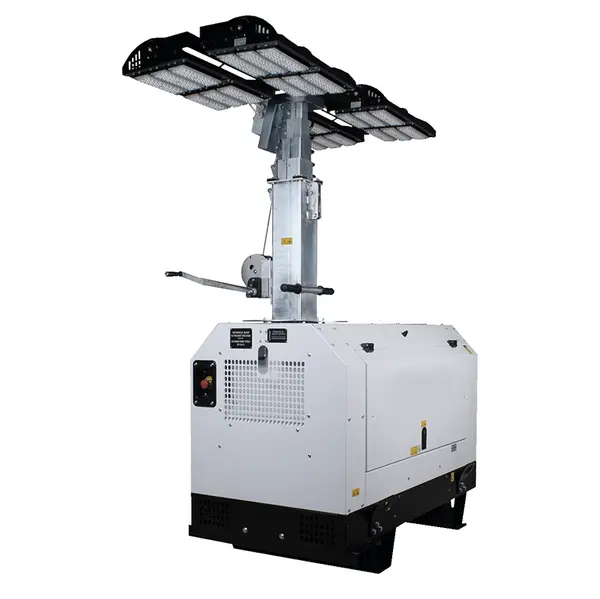

GenSet LT 5500 SY-L - Silent Generator Light Tower

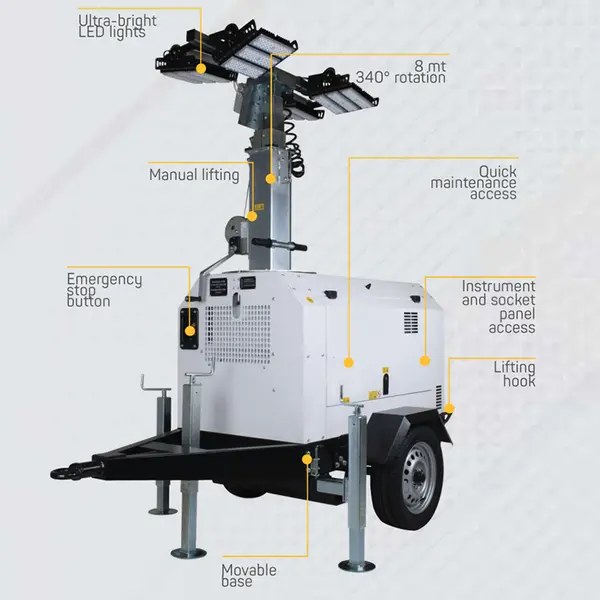

GenSet LT 5500 SY-L is a silenced generator light tower 8 meters high and allows a 340° rotation with manual lifting , it has 3 stabilizers and a trolley with 2 pneumatic wheels and rudder , it also has lifting hooks and fork tubes .
It has a 1500 RPM diesel engine, the fuel tank has a capacity of 100 L and there is a fuel level indicator . The starting of this light tower is electric , there is an emergency stop button , it produces a noise of 66 dB(A) at 7 m away.
Technical specifications
The GenSet LT 5500 SY-L light tower generator features a single-phase CEE 230V - 16 A socket protected by a thermal switch . The working environment temperature can reach 40°C , the insulation class is H , and the protection degree is IP 23 .

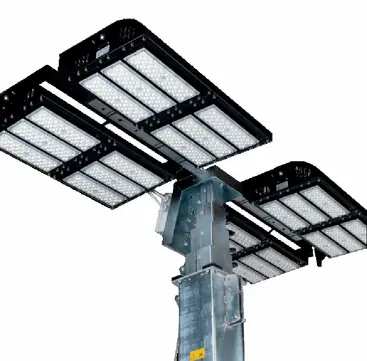

This light tower is truly very silent , it is also light and compact , with particularly bright LED lights, supplied with a trolley for slow towing on construction sites or an approved road trolley for practical handling , or on a base.

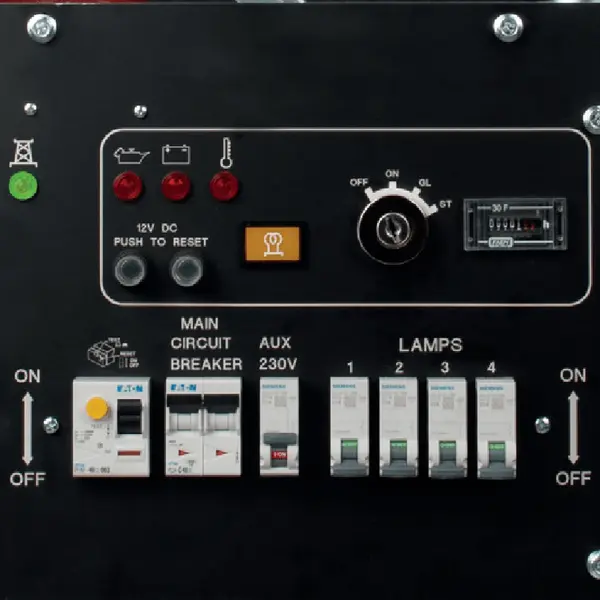

Control Panel
The GenSet LT 5500 SY-L generator control panel features:
- Hour meter
- Differential switch
- Glow plug pre-heating lamp
- Lamp switches
There is also an automatic engine shutdown device in the event of low oil pressure, battery charger failure and high water temperature.
Diesel engine
The 2-cylinder Yanmar 2TNV70 diesel engine is water-cooled, produces 1500 RPM , 570 cm³ with a maximum power of 7.9 HP (5.8 kW) and has an electric start.
Fuel consumption at 75% load is 1.5 L/h .
GenSet LT 5500 SY-L Lighting Tower Dimensions
Fields of application
- Night maintenance work
- Emergency response
- Civil Protection
Technical Data
| Power Supply | 230V |
| Max Power | 5.3 kW |
| AC Generator | Synchronous |
| Power Factor | what is 0.8 |
| Motor | Yanmar 2TNV70 |
| Fuel | Diesel |
| Engine RPM | 1500 RPM |
| Number of Cylinders | 2 |
| Power | 7.9 HP |
| Displacement | 570cc |
| Start-up | Electric |
| Fuel Tank | 100 L |
| Insulation Class | H |
| Noise | 66 dB(A) at 7 m |
| Protection Class | IP 23 |
| Room temperature | 40°C |
| Altitude | 1000 m |
| Dimensions | 268.8 x 152.2 x 239.4 cm |
| Max Dimensions | 268.8 x 261.4 x 895 cm |
| Weight | 535 kg |
