Ohashi ES151GH
23.2 HP Petrol Wood Chipper
Stress-Free Hydraulic Control

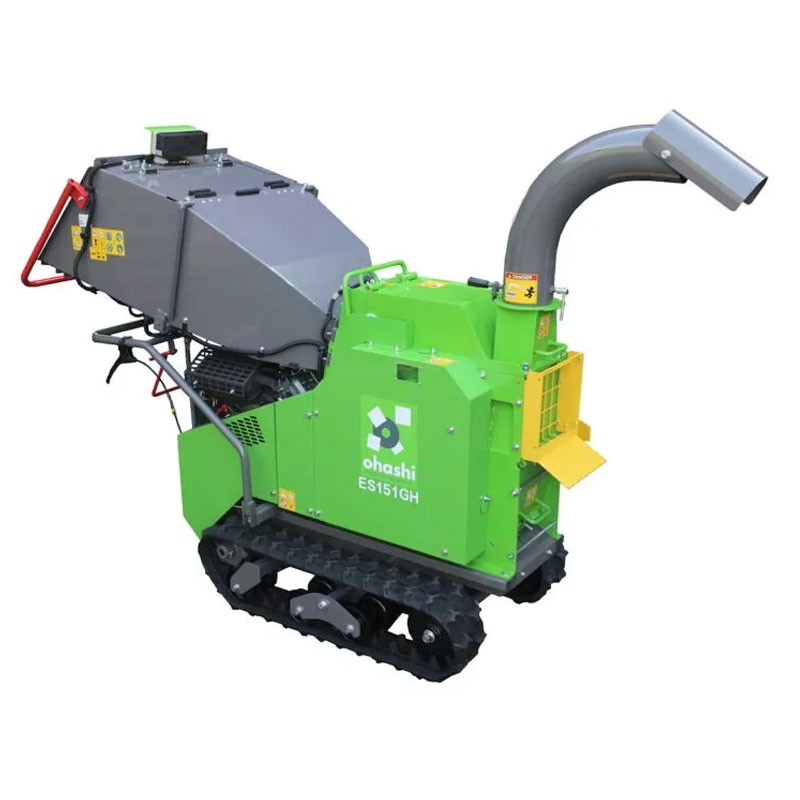

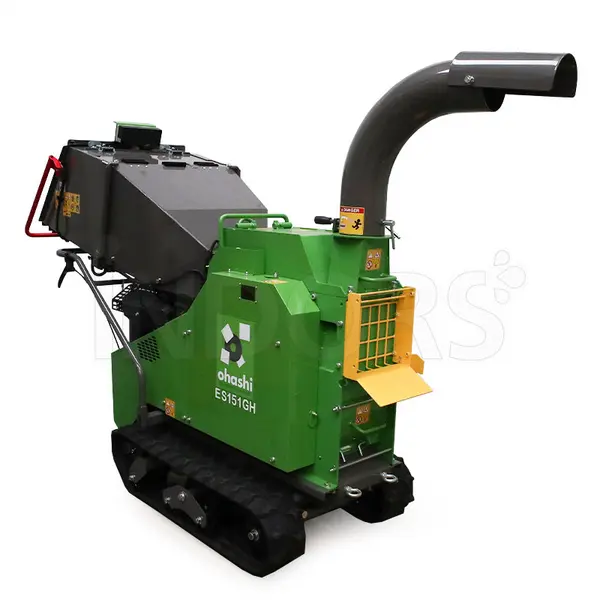

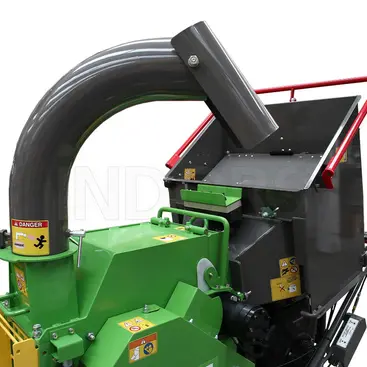

Ohashi ES151GH - Briggs and Stratton 23 HP Tracked Wood Chipper

The Ohashi ES151GH wood chipper is a professional machine designed for quickly and efficiently reducing and disposing of branches and plant debris . Made in Japan , it is synonymous with quality, reliability, and high performance, making it ideal for gardeners, landscaping contractors, and agricultural and forestry workers.

The Ohashi ES101GH is equipped with a Briggs and Stratton Vanguard V-Twin petrol engine, a robust and high-performance unit capable of delivering 23.2 HP (17.1 kW) of power . Thanks to the 15 L tank, fuel consumption is optimised at 6.5 L/h , ensuring adequate autonomy for prolonged working sessions.

Made in Japan, with Italian assistance

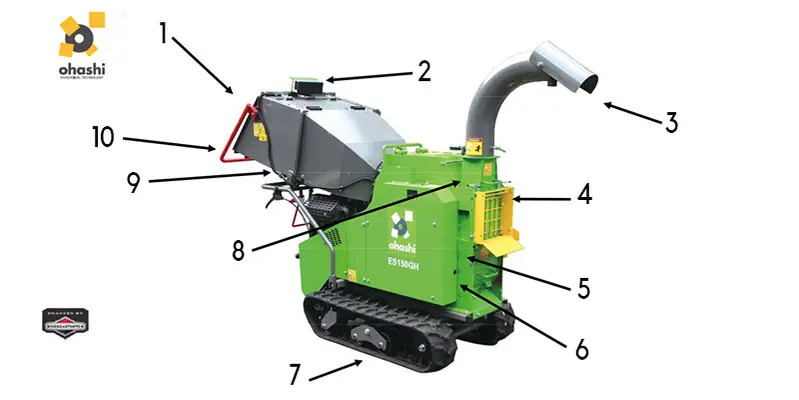

1. Product Entry
2. Anti-Stress Buttons and Roller Control
3. Adjustable Expulsion Tube
4. Low Drain Application
5. Internal Screening
6. Internal Booster Fan
7. Tilting Track
8. Opening for Maintenance of Knives and Counter-Knives
9. Space-Saving Folding Hopper
10. Safety Grip and Immediate Stop

Functional specifications

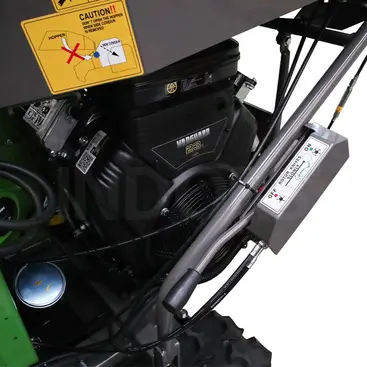

Briggs and Stratton Engine

The Ohashi ES151GH wood chipper is a machine designed for intensive use, ideal for professionals in the agricultural, forestry, and landscaping sectors. Thanks to its 23.2 HP (17.1 kW) Briggs & Stratton Vanguard V-Twin engine, it guarantees high performance and high operating efficiency.

Petrol-Powered Shredder with Advanced Cutting

This petrol-powered shredder features hydraulic control to prevent overloads and optimize operating efficiency. The material fed into the hopper is shredded by a cutting system consisting of two chipping knives , a control blade, and eight hammers , ensuring effective and uniform shredding.

Maximum chipping diameter 150 mm

The maximum chipping diameter is 150 mm , allowing you to work with branches of considerable size. The feeder size of 200 x 123 mm allows for easy insertion of the material to be shredded.

Track Drive and Transmission System

The Ohashi ES151GH is a self-propelled tracked shredder , equipped with a mechanical gearbox for easy mobility on various types of terrain. It offers a forward speed of 1.2 km/h - 2.5 km/h and a reverse speed of 1.4 km/h , making it easy to move even in narrow spaces or on rough terrain. It has a speed selector.

The transmission system to the rotor is entrusted to V-belts , which ensure durability and resistance over time.

Innovative Hopper Design

A distinctive feature of the Ohashi ES151GH is the new , even wider hopper design: a design designed to facilitate the passage of branches towards the roller and reduce the risk of blockages. This improvement ensures greater operational efficiency and fewer interruptions during use.

Stress-Free Hydraulic Device

A No Stress Hydraulic Control system (electronic) communicates with the feed roller to ensure stable and effective material feeding.

Launch Speed

By directing the wood chips directly into the truck bed, it is possible to increase the speed of the launch.

Reverse Command

There is the possibility of extracting materials from the hopper with the reverse function by rotating the control.

Wood Chip Expulsion System

The shredded material is expelled through a forced ventilation launch tube, adjustable in height up to 1370 mm and with a variable angle of up to 270° , allowing precise orientation of the chips according to operational needs.

Characteristics

• Tracked shredder with hopper
• Briggs & Stratton Vanguard V-Twin 23 HP engine
• 15 L tank
• Recoil Start/Electric Start
• Steering with Clutch Levers
• Self-propelled
• Speed Forward 1.2-2.5 km/h - Reverse 1.4 km/h
• Stress-Free Hydraulic Control
• V-Belt Transmission
• Chipping Diameter Ø 150 m
• Cutting with 2 knives and 1 counter knife and 8 hammers
• Holes Ø 70 mm
• Forced Ventilation Launch Tube
• 270° Variable Launch Angle
• Wide Hopper for Passing Branches and Reduces Blockages
• Weight 490 kg

Watch the video

Demo video of similar model:

Ohashi: Leader in Agricultural Shredders and Chippers

Since 1988, Ohashi has developed low-impact agricultural and forestry products that offer high performance and low pollution. The Ohashi logo represents our relationship with the natural world, its limited resources, and how we can act responsibly for the benefit of future generations. Ohashi chippers are quickly becoming the benchmark compact tracked chippers. Products are Made in Japan, with Italian support.
