Zanon BIO 130-C
Petrol-Powered Wheeled Shredder with 13 cm Cutting Width

Zanon BIO 130-C - Wheeled Shredder with Honda Engine and 13 cm Cutting Diameter

The Zanon BIO 130-C is a professional wheeled shredder designed for intensive use in the agricultural sector and in greenery maintenance, ideal for farms , forestry operators , companies specialized in greenery treatment and composting professionals. Equipped with a Honda GX630 petrol engine , this shredder guarantees high performance in the management of woody and vegetal materials , allowing the shredding of branches , prunings and green waste up to a maximum diameter of 13 cm . The presence of the NO STRESS electronic control unit ensures intelligent management of the material feed, making the BIO 130-C an extremely efficient and reliable machine.

This model stands out for its ability to reduce the volume of vegetable waste by up to 45% , offering an hourly output of up to 10 m³/h . Its professional construction features, combined with the presence of the hydraulic pick-up roller and the cutting system with 36 hammers , 3 blades and 1 counterblade , guarantee uniform shredding of both fresh and fibrous materials. Fully approved for circulation in Italy , it is a complete, solid solution designed to last over time.

TECHNICAL SPECIFICATIONS

The Zanon BIO 130-C is powered by a powerful 20 HP Honda GX630 engine , ensuring reliability, constant torque, and optimized fuel consumption even in the most demanding working conditions. The shredding unit reaches a speed of 2850 RPM , supported by a double belt transmission system, model AX6I, which ensures stability, precision, and continuity in cutting operations. The machine complies with Directive 2000/14/EC on the limitation of environmental noise and has a declared noise level of 124 dB , a value consistent with the power and professional purpose of the machine.

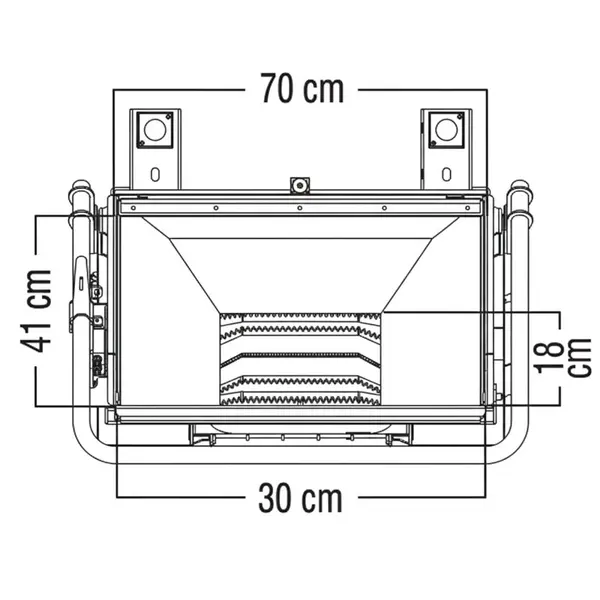

In terms of performance, the machine supports a cutting diameter of up to 13 cm , with a productivity of between 9 and 10 m³/h , making it suitable for managing high volumes of plant residues. The overall weight of 490 kg testifies to the robustness of the structure, equipped with a 41 × 70 cm loading hopper positioned 99 cm from the ground to facilitate feeding operations. The material is unloaded through an adjustable pipe placed 190 cm high , designed to convey the shredded product into bins, trailers or elevated containers.

FUNCTIONAL SPECIFICATIONS

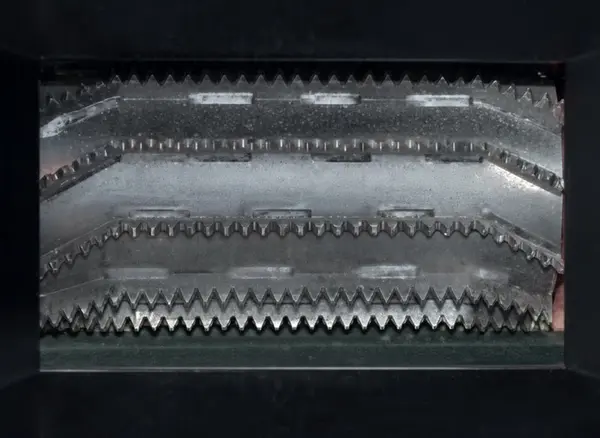

Hydraulic Pick-Up Roller Feeding System

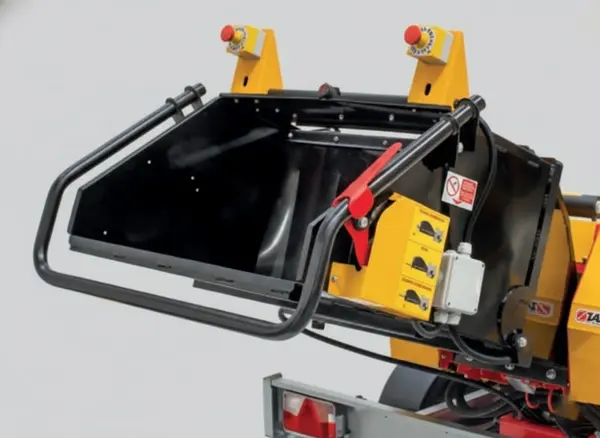

The Zanon BIO 130-C 's material feed system uses a hydraulic pick-up roller that ensures constant and controlled transport of plant residues to the cutting unit. Roller rotation is electronically controlled via a control handle , which also includes a safety function for immediate emergency shutdown. This ensures complete control during the feeding phase, improving operator safety and workflow consistency.

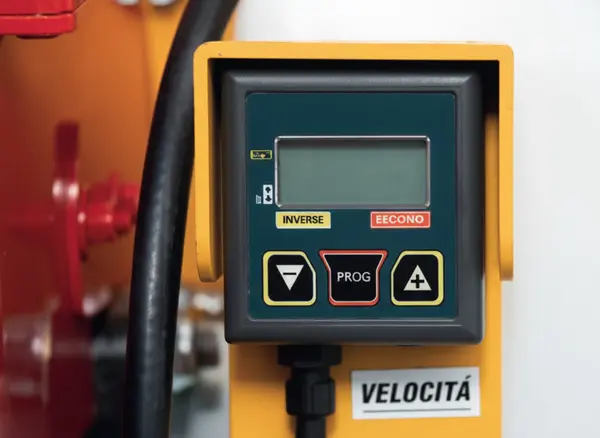

NO STRESS Automated Management Technology

The NO STRESS electronic control unit is one of the shredder's strengths. This device constantly monitors the machine's load and automatically adjusts the speed of the pick-up roller, preventing overload and optimizing shredding capacity. Under heavy load conditions, the system reduces feed rate to maintain work quality, while restoring speed when the load decreases, allowing for a continuous and productive cycle.

High-Yield Cutting Group

The cutting unit is composed of 36 hammers , 3 main blades , and 1 counterblade , a configuration designed to ensure fine and uniform shredding on a wide range of materials. This combination allows for effective processing of both fresh, green branches and fibrous, moist materials such as palm , vine , or pine. The high operating speed and durable components ensure long life and professional-level processing capacity.

Wheeled Structure Approved for Transport

The machine is equipped with a ball-joint chassis , fully approved for Italy , which allows the shredder to be towed safely and in compliance with current regulations. The robust frame design ensures stability during transport and resistance to the stresses resulting from frequent movement on agricultural land or roads.

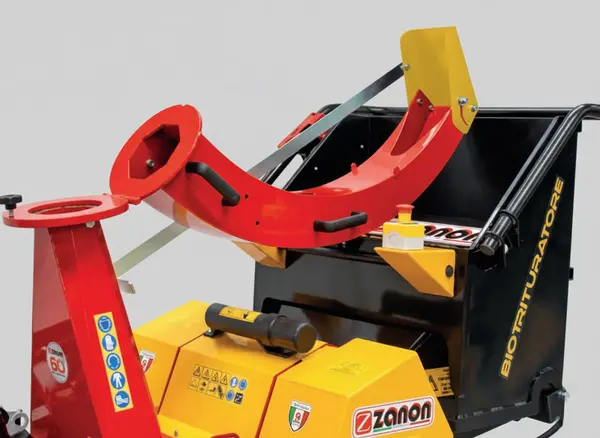

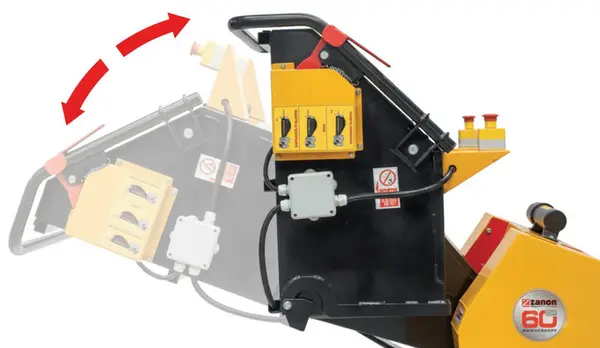

Foldable Hopper and Discharge Pipe

For easier storage and transport, the Zanon BIO 130-C features a foldable hopper and discharge pipe , reducing the machine's overall size without compromising its structural strength. This solution is particularly useful for those who need to optimize warehouse space or operate on construction sites where mobility is essential.

Safety Devices and CE Certifications

The shredder is equipped with CE- compliant safety guards , a safety handle , and electronic control systems designed to prevent accidents and ensure safe operation. Compliance with Directive 2000/14/EC on noise levels makes it suitable for use in environments requiring specific noise levels, increasing the machine's operational versatility.

Characteristics

• Professional shredder
• Petrol powered
• Honda GX630CC Engine
• Power 20 HP
• Cut 13 cm
• Hourly output 9÷10 m³/h
• Engine speed 2850 RPM
• System of 3 blades, 1 counter blade, 36 hammers
• AX6I dual belt system
• Adjustable exhaust
• Adjustable refining sieve
• Safety protections compliant with CE regulations
• Complete with homologation for Italy
• Noise level 124 dB
• Weight 490 kg
• Made in Italy
