Zanon BC 90 Cingo Honda
Petrol Tracked Wood Chipper with 9 cm Cutting Width

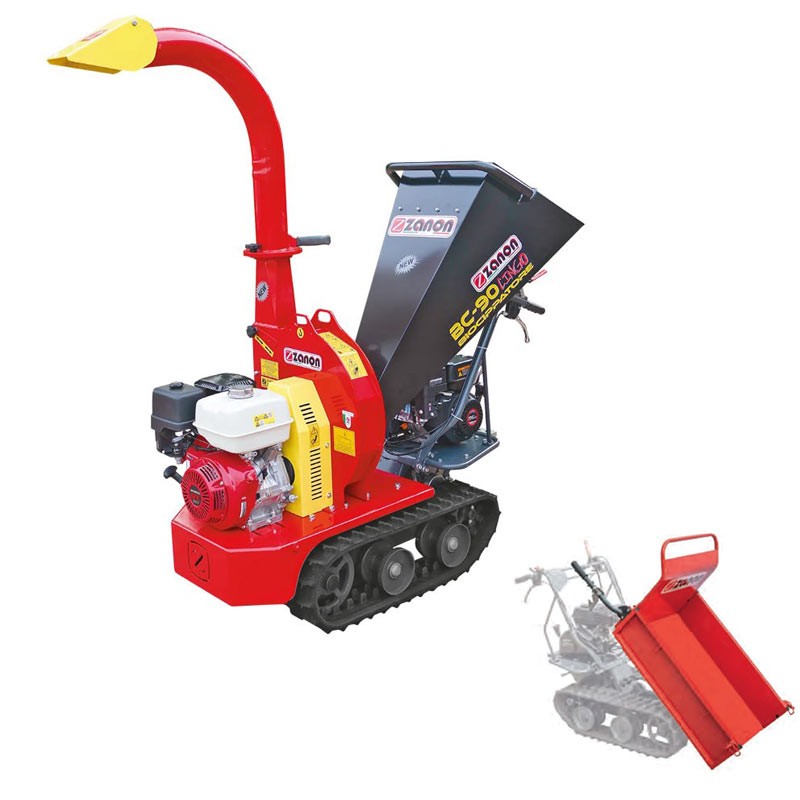

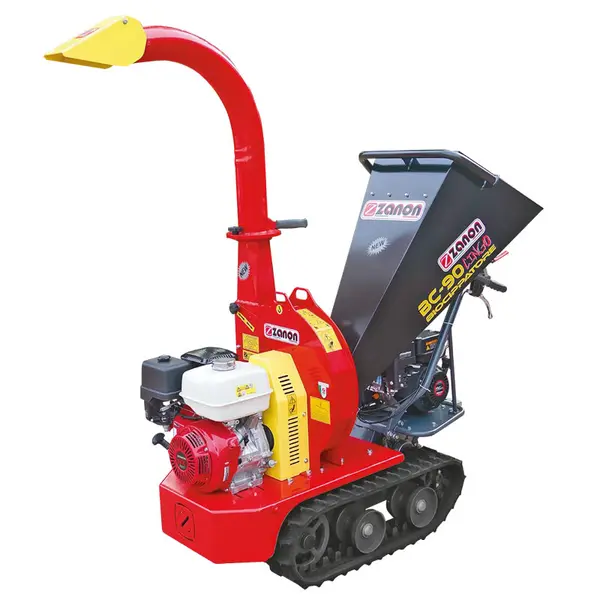

Zanon BC 90 Cingo - Wood chipper with 13 HP Honda engine and 9 cm cutting diameter

The Zanon BC 90 Cingo is a professional tracked chipper designed for intensive use in green maintenance, pruning, and forestry work. This model combines a high-powered engine with a highly stable tracked structure, allowing operators to work safely even on uneven terrain or slopes of up to 20% . Thanks to its advanced configuration, the machine guarantees constant shredding capacity and a productivity of up to 5-6 m³/h .

With its 13 HP Honda GX390 engine and a cutting system consisting of professional steel blades , repositionable counterblades and high-resistance hammers , the Zanon BC 90 Cingo represents an ideal solution for professionals who need a reliable, powerful tool capable of operating on materials up to 9 cm in diameter . The presence of the high 170 cm exhaust and the enlarged hopper allows for optimal management of the flow of material, reducing overall dimensions and improving operational efficiency.

Tipper body INCLUDED.

TECHNICAL SPECIFICATIONS

The Zanon BC 90 Cingo wood chipper is powered by a Honda GX390 petrol engine , one of the most reliable in the professional sector. This 4-stroke engine delivers 13 HP and is combined with an expanding clutch that facilitates starting and ensures progressive transmission engagement. The maximum rotation speed reaches 3100 RPM , allowing the cutting system to maintain a constant speed even under heavy loads, with optimized consumption and reduced vibration levels. Compliance with Directive 2000/14/EC ensures controlled operation in terms of noise emissions, making the machine suitable for professional work environments where noise regulations are particularly stringent.

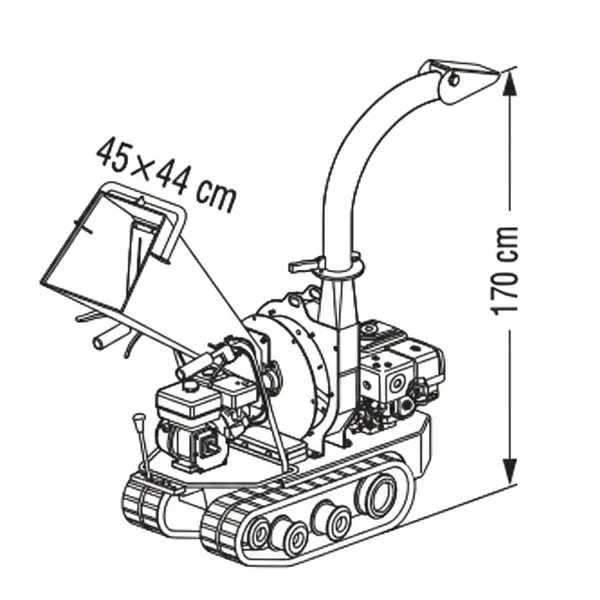

The engine unit is mounted on a crawler chassis with three forward gears and one reverse gear , automatic track tension adjustment, and automatic parking brakes for excellent vehicle control. The oversized 45 x 44 cm hopper and discharge chute positioned 170 cm from the ground ensure a rapid and continuous flow of material. The cutting system, consisting of two main blades , two counterblades , and ten hammers , allows for extremely fine shredding, capable of reducing waste volume by up to six times. The overall weight of the machine is 350 kg , perfectly balanced to ensure stability during operation even on terrain with slopes of up to 20% .

FUNCTIONAL SPECIFICATIONS

Professional shredding system

The Zanon BC 90 Cingo shredding system uses professional steel blades , repositionable 4-edge counterblades and high-resistance hammers , which guarantee a uniform cut and precise shredding of plant material. Thanks to the power of the Honda GX390 engine , the rotor maintains a constant speed, allowing it to work on branches, brushwood and prunings up to 9 cm in diameter with a productivity of 5-6 m³/h .

Forced ventilation and adjustable exhaust

The ejection duct uses a forced ventilation system, regulated to maintain a continuous flow even during the most intense work sessions. The adjustable outlet allows the shredded material to be directed precisely, while the 170 cm throw height facilitates direct loading into skips, trailers, or collection containers.

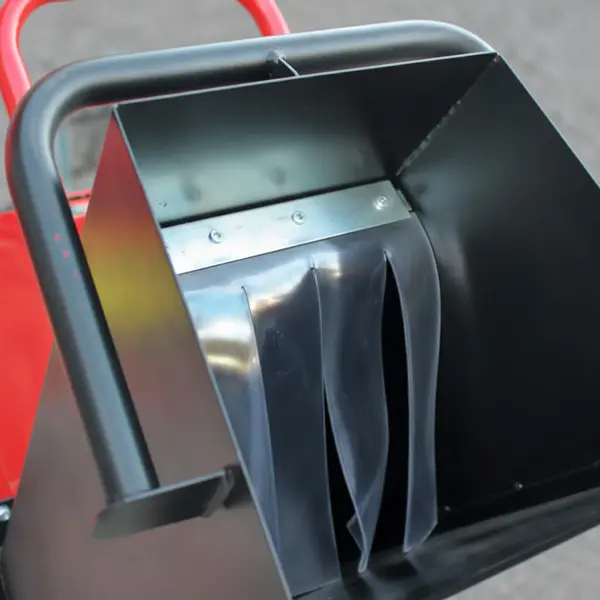

Larger, high-capacity hopper

The 45 x 44 cm hopper , designed to accommodate large quantities of material, allows for continuous, uninterrupted feeding. The enlarged loading mouth allows for the introduction of bulky branches and heterogeneous material without the need for pre-cutting, radically improving operating speed in professional settings.

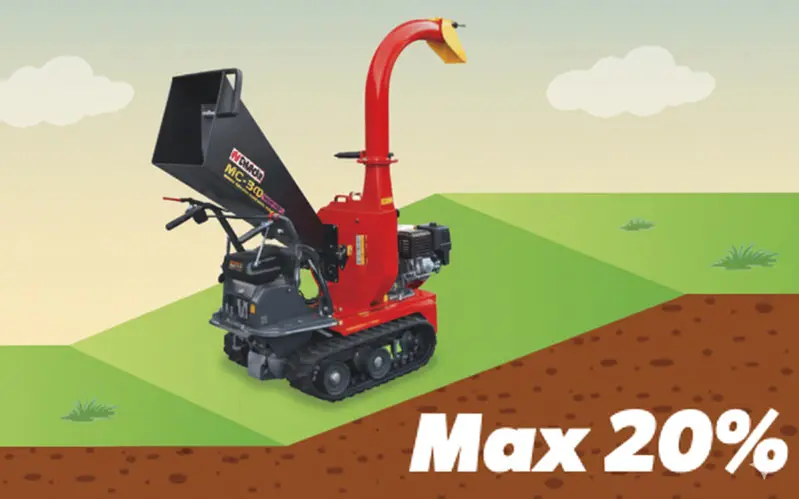

Tracked vehicle for difficult terrain

The crawler offers superior traction and impeccable stability on uneven, muddy, or sloping terrain. Three forward and one reverse gears, along with automatic track tensioning, allow the operator to move the machine precisely even in tight spaces or on unstable surfaces.

Adjustable refining sieve

The adjustable refining sieve allows you to adjust the particle size of the shredded material based on operational needs. This feature improves the quality of the wood chips and makes the machine extremely versatile, suitable for applications requiring uniform particle size.

Professional structure and certified safety

The machine features CE-compliant safety guards , ensuring safe use even in harsh working conditions. The robust 350 kg structure and double belt transmission help make the Zanon BC 90 Cingo a reliable, durable tool designed to easily withstand intensive professional use.

Tipper body included

The tipping container is supplied as standard equipment in the 300 kg power barrow version and is an extremely versatile feature. The container is fully enclosed and can be easily removed to install the tracked chipper , allowing you to quickly switch from transport to processing configuration without sacrificing the stability and functionality of the entire system.

Characteristics

• Professional wood chipper
• Petrol powered
• Honda GX390 engine
• Power 13 HP
• Cut 9 cm
• Hourly output 5÷6 m³/h
• Engine speed 3100 RPM
• System of 2 blades, 2 counter blades, 10 hammers
• Adjustable exhaust
• Crawler
• Adjustable refining sieve
• Tipper
• Safety protections compliant with CE regulations
• Noise level 112 dB
• Weight 350 kg
• Made in Italy
