FBC CIP.10 DU
Self-propelled chipper
with tracks, cutting diameter 10 cm

FBC CIP.10 DU - Self-propelled chipper on wheelbarrow, working capacity from 6 to 9 m³/h

The FBC CIP.10 DU wheelbarrow-mounted wood chipper is a professional machine designed for intensive use in forestry, agriculture, and landscaping. This chipper is designed for shredding fresh prunings and branches up to 100 mm in diameter, offering high performance and excellent maneuverability even on difficult terrain thanks to its self-propelled track system.

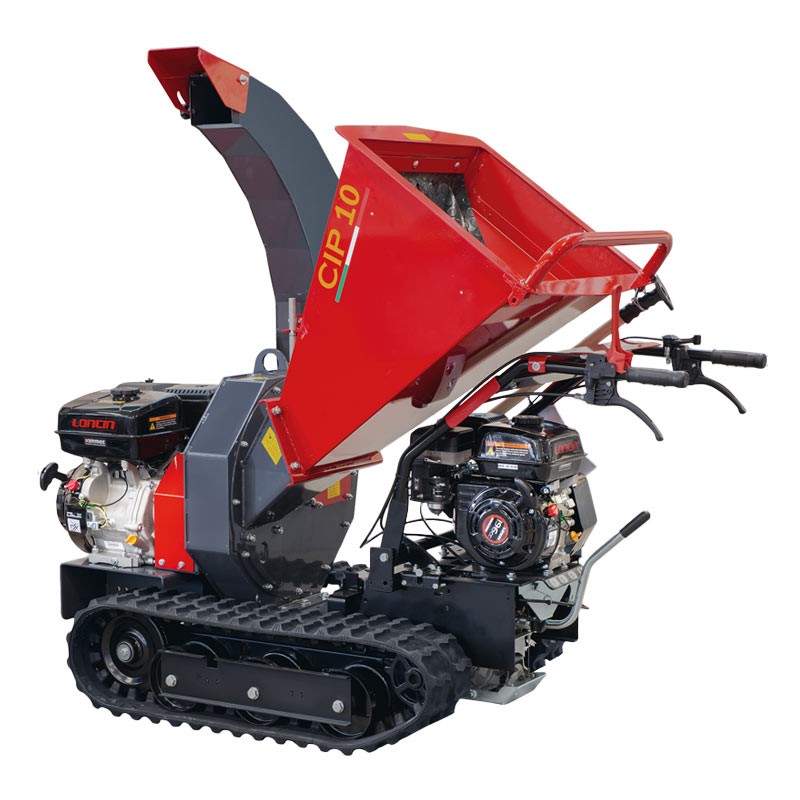

In the photo, model CIP.10.13A.DU with Loncin engines

Built entirely of high-thickness steel , the FBC CIP.10 DU combines robustness , reliability and safety in compliance with EU regulations. The configuration with a single loading hopper and cutting system with blades and mobile hammers allows for the production of perfect chips for composting , mulching or energy use in wood chip boilers .

Belonging to the FBC CIP Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Available models

• CIP.10.13H.DU Honda GX390 engine 11.7 HP 8.7 kW, 389 cc (chipper) + Honda GX160 engine 4.8 HP, 3.6 kW, 163 cc (track drive)
• CIP.10.13A.DU Loncin G390F 11 HP 8.2 kW, 389 cc engine (chipper) + Loncin G200F 5.6 HP, 4.2 kW, 196 cc engine (track drive)

Technical specifications

The FBC CIP.10 DU chipper is available in two power versions , both equipped with single-cylinder 4-stroke engines for both the chipping system and the self-propelled part. The version with Honda engines mounts an 11.7 HP (8.7 kW) GX390 for the cutting system and a 4.8 HP (3.6 kW) GX160 for the tracked power barrow. Alternatively, the version with Loncin engines is equipped with an 11 HP (8.2 kW) G390F for the chipper and a 5.6 HP (4.2 kW) G200F for the traction system. Both configurations offer high reliability , continuity of work and adequate power even on difficult or sloping terrain .

The machine can process branches up to 100 mm in diameter , with an hourly production capacity ranging from 6 to 9 m³/h , depending on the type of material, blade maintenance, and operator experience. The self-feeding system facilitates continuous material introduction, while the discharge pipe, which can be mounted on both sides, ensures flexibility during wood chip collection. The loading hopper has a material introduction height from the ground of 115 cm , and an unloading height of 155 cm .

Functional specifications

High-performance professional chipping

The cutting system of the FBC CIP.10 DU professional wood chipper guarantees powerful and precise shredding . The combination of a blade, an L-shaped counterblade and ten moving hammers allows for a clean initial shredding followed by a fine chipping process ideal for reuse. The chipping disc is supported by an intermediate shaft with double bearings , designed to withstand intense stress during heavy-duty processing.

Tracked power barrow for difficult terrain

Thanks to the integrated tracked power barrow , the FBC CIP.10 DU power barrow wood chipper moves easily on any type of terrain, including uneven surfaces and slopes of up to 20% . This makes interventions in environments such as parks , woods and undergrowth much more efficient, while maintaining maximum stability and safety during work.

Self-feeding system for continuous loading

The material is fed via a self-feeding system that speeds up and optimizes the chipping process, reducing the need for direct operator intervention. This system improves hourly productivity and ensures a constant work flow , especially with fresh and bulky material.

Certified safety and simplified maintenance

The FBC CIP.10 DU industrial chipper is designed in compliance with European safety regulations. It features safety pins to lock the cutting system during maintenance, a branch pusher to protect the operator during loading, and simple, accessible controls. The bearings are greased manually, making maintenance quick and easy, even in the field.

Characteristics

• Professional wood chipper for intensive use
• Self-propelled on a wheelbarrow
• Honda or Loncin engine
• Chipper power 11.7 HP ( 8.7 kW) or 11 HP (8.2 kW)
• Wood chipper displacement 389 cc
• Wheelbarrow power 4.8 HP ( 3.6 kW) or 5.6 HP (4.1 kW)
• Wheelbarrow displacement 163 or 196 cc
• Productivity from 6 to 9 m³/h
• Max diameter Ø 100 mm
• Chipping disc
• A blade
• Ten S-shaped moving hammers
• An L-shaped counterblade
• Material introduction height from ground 1100 mm
• Exhaust pipe height 1550 mm
• Transmission to the flywheel via belts and centrifugal clutch
• Self-powered system
• 100% Made in Italy
