FBC CIP.6.PF
Tractor-Driven Biochipper
with Cardan Shaft

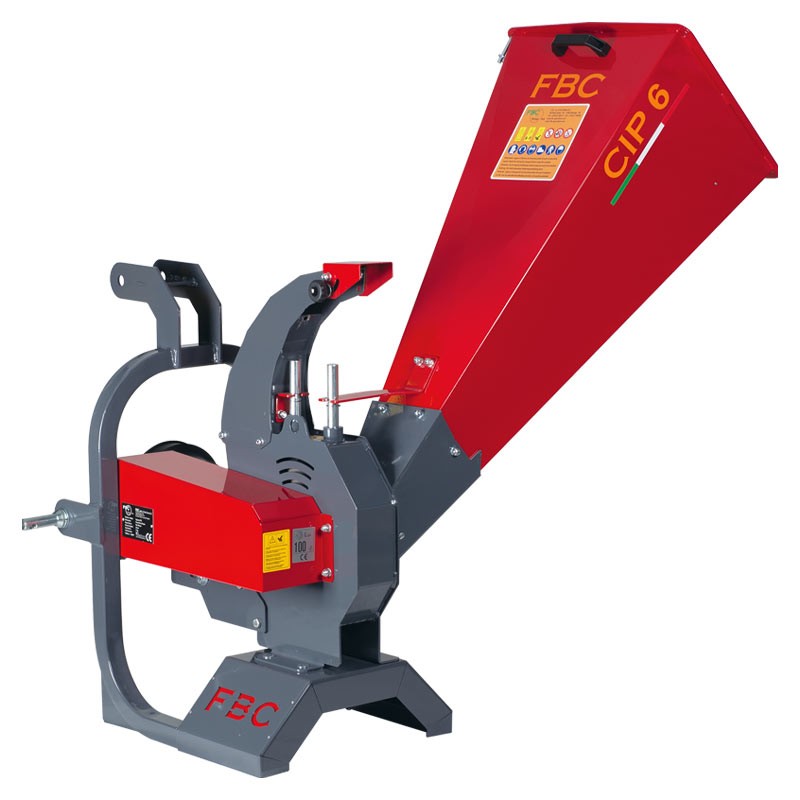

FBC CIP.6.PF - Tractor-Mounted Wood Chipper with Cardan Shaft, Working Capacity 2-4 m³/h

The FBC CIP.6.PF tractor-mounted chipper with PTO shaft is a semi-professional machine designed to meet the shredding needs of wood and plant residues in agriculture, forestry, and landscaping. Thanks to its sturdy structure and minimum power requirement of just 14 HP , it is perfectly suited to small and medium-sized tractors, maintaining high performance even under prolonged use.

Equipped with a self-feeding system , the FBC CIP.6.PF wood chipper can process branches up to 60 mm in diameter , with an hourly production rate of up to 4 m³/h, which varies depending on the material being treated, the sharpness of the blades, and the operator's skill. Among its key features is the disc cutting system with blade and moving hammers , which guarantees chipping efficiency and optimal volumetric reduction.

Belonging to the FBC CIP Series , this wood chipper best represents the quality and reliability of a Made in Italy wood chipper, carefully designed and made with robust and durable components , suitable for frequent and continuous use over time.

Technical specifications

The FBC CIP.6.PF chipper is powered by a tractor PTO shaft with an angle multiplier designed to operate at 540 RPM , requiring a minimum tractor power of 14 HP . The connection to the PTO is direct, making the machine immediately operational without the need for additional components. Mechanical energy is transmitted via a double belt and pulley flywheel , which guarantees reliability and resistance even in the most demanding working environments.

In terms of performance, the machine is capable of processing branches and plant waste with a maximum diameter of 60 mm , supported by a chipping disc with 1 blade , 4 S-shaped mobile hammers and an L-shaped counterblade , for precise and continuous shredding. The loading hopper has a material introduction height of 100 cm , while the discharge pipe is positioned 90 cm from the ground , allowing for easy management of the shredded material.

Functional specifications

Professional disc cutting system

The heart of the FBC CIP.6.PF cardan shaft chipper is a highly efficient disc cutting system , equipped with a main blade , four S-shaped mobile hammers and an L-shaped counterblade . This configuration allows for continuous, rapid and uniform shredding, optimising the processing of even branches and more fibrous material. The disc is mounted on a rear-flange shaft , supported by two self-lubricating bearings , which ensure durability and reduced need for routine maintenance.

Integrated self-powering system

The self-feeding system of the FBC CIP.6.PF chipper exploits the rotary action of the chipping disc combined with the moving hammers, which creates a natural traction on the introduced material. This effect allows the machine to " self-pull " the branches into the cutting chamber, without the aid of motorized rollers or constant manual intervention. This system is particularly efficient with dry or regularly shaped material, and helps maintain good hourly productivity , simplifying the operator's work.

Transmission via high-performance belts

The flywheel transmission via belts and double pulleys ensures even power distribution from the tractor to the cutting system. This technical solution reduces the risk of overload, improves operating safety, and protects internal components from premature wear. The system's robustness allows for consistent operation even with demanding materials and under prolonged working conditions.

Safety during maintenance

The FBC CIP.6.PF safety system includes locking pins to prevent disc rotation during maintenance operations, increasing operator protection and reducing mechanical risks. A branch and leaf pusher is also included, useful for facilitating the feeding of material into the hopper without exposing the operator to direct danger.

Tractor compatibility and ease of handling

The FBC CIP.6.PF wood chipper is designed for standard tractor attachment , making it easily installable on a wide range of agricultural vehicles with a minimum power of 14 HP. The structure, with a transverse working position compared to the tractor's direction of travel, makes it easier for the operator to load the material, improving visibility and control during chipping operations.

Watch the video

Characteristics

• Semi-professional wood chipper
• Cardan- powered
• Productivity between 2 and 4 m³/h
• Max diameter Ø 60 mm
• Chipping disc
• A blade
• Four S-shaped moving hammers
• An L-shaped counterblade
• Material introduction height from ground 1000 mm
• Exhaust pipe height 900 mm
• Transmission to the flywheel via belts and pulleys
• Self-powered system
• 100% Made in Italy
