MHS Gripen 015
Hydraulic Forestry Grapple
Closed Forks
Capacity 0.15 m³
Capacity 2000 kg
For excavators 3.0÷5.0 Ton
Warranty 2 years
14 days to change your mind
Shipped on Pallet

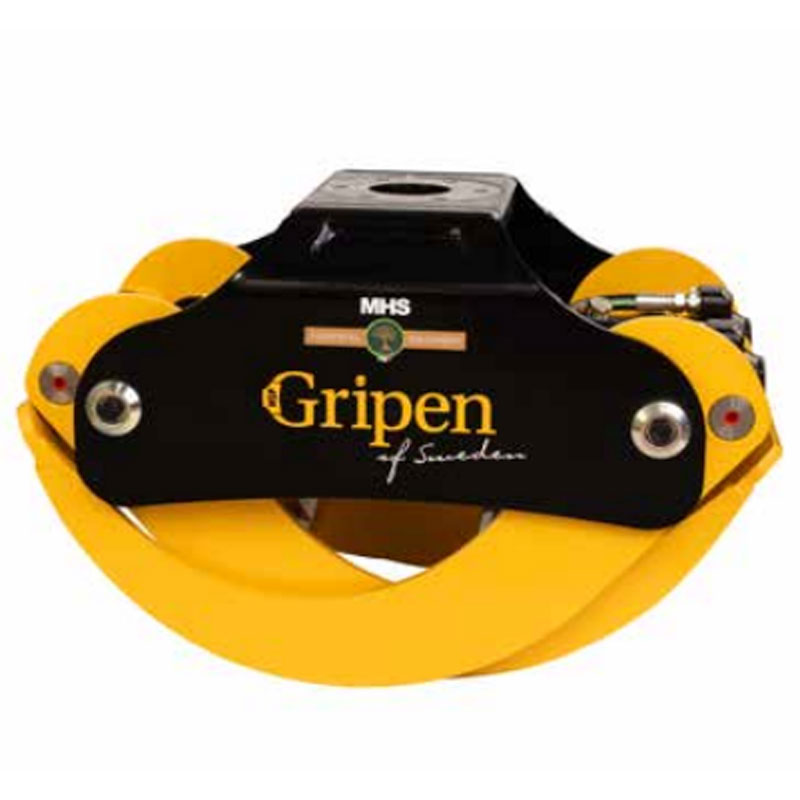

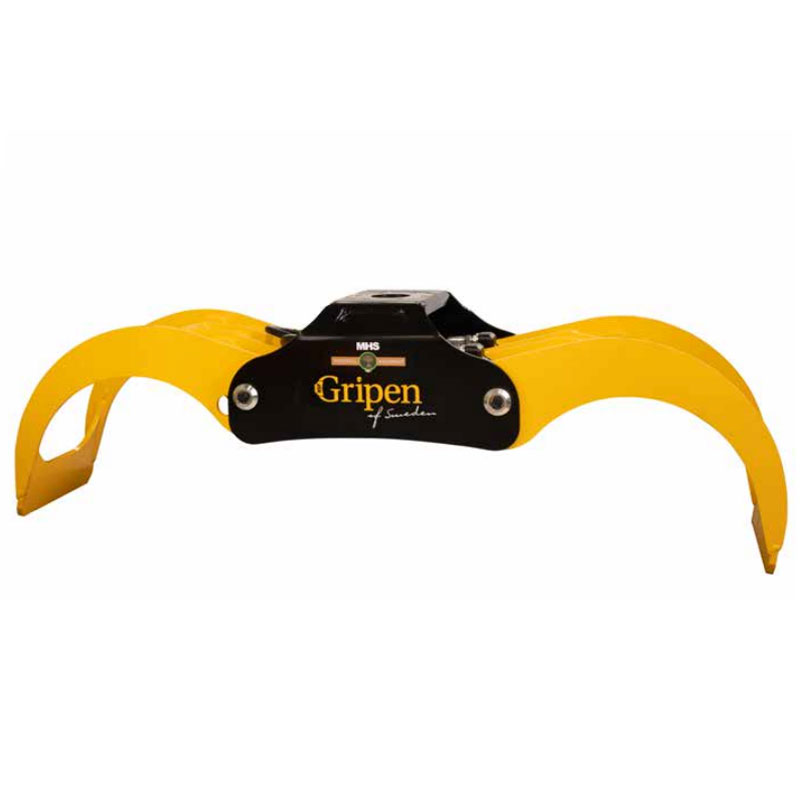

MHS Gripen 015 - Forestry Grapple with Closed Forks - Standard and Heavy Duty Model
The MHS Gripen 015 log grab is a high-quality tool, designed to optimize the handling and loading of timber . Thanks to its advanced hydraulic system , it guarantees a powerful and safe grip on logs of different sizes , ensuring maximum efficiency and precision in harvesting and transport operations.
The robust , wear-resistant HARDOX steel structure and rotation capacity allow it to tackle the most difficult terrains, improving productivity and operator safety .
This grapple for forestry and agricultural applications is reliable and durable, optimising work by reducing operating times.
Closed fork clamps hold timber securely, preventing spillage and improving load efficiency during handling.
The design and production of this MHS hydraulic clamp takes place entirely in Sweden , combining quality , innovation and reliability . 100% Made in EU , this hydraulic clamp guarantees superior performance , thanks to the integration of advanced technology and European craftsmanship .
Available Models
- MHS GRIPEN 015 Standard - weight 120 kg
- MHS GRIPEN 015 Heavy Duty - weight 150 kg, increased thicknesses, oversized rotor plate, double arm, reinforced lower arm tubes, expansion pins
Technical Specifications
Log and wood grab for agricultural and forestry use , with maximum capacity of 0.15 m³ and maximum load capacity of 2000 kg .
Designed to withstand maximum pressures of 23 Mpa (equivalent to 230 bar ), it offers optimum performance in heavy-duty working conditions.
The structure is made of resistant Hardox steel , to guarantee solidity, durability and excellent tensile strength.
Compatible with excavators from 3.0 to 4.0 Ton (Standard model) or from 3.0 to 5.0 Ton (Heavy Duty model) .
MHS Gripen Heavy Duty
For maximum strength, the Gripen HD model features increased thicknesses , double arm , enlarged rotor plate , reinforced tubes and expansion pins for greater solidity.
Dimensions in millimeters
| Model | TO | B | C | D | AND | F |
| Gripen 015 STD | 510 | 740 | 90 | 685 | 1170 | 397 |
| Gripen 015 HD | 510 | 740 | 90 | 685 | 1170 | 397 |
Characteristics
- Forestry grapple for logs and wood
- With closed forks
- Horizontal cylinder
- Hardox steel structure
- Capacity 0.15 m³
- Capacity 2000 kg
- Maximum pressure 23 Mpa / 230 bar
- For excavators up to 5.0 Ton
- Standard or Heavy Duty model of your choice
- Made in Sweden
- Made in EU
Technical Data
| Model | Gripen 015 Standard | Gripen 015 Heavy Duty |
| Forks | Closed | Closed |
| Max capacity | 0.15 m³ | 0.15 m³ |
| Max. capacity | 2000 kg | 2000 kg |
| Max Pressure | 23 Mpa - 230 bar | 23 Mpa - 230 bar |
| Material | HARDOX Steel | HARDOX Steel |
| For Excavators | 3.0÷4.0 Tons | 3.0÷5.0 Tons |
| Closed Dimension | 51 x 74 x 39.7 cm | 51 x 74 x 39.7 cm |
| Open Dimension | 68.5 x 117 x 39.7 cm | 68.5 x 117 x 39.7 cm |
| Weight | 120 kg | 150 kg |
Technical Data
| Model | Gripen 015 Standard | Gripen 015 Heavy Duty |
| Forks | Closed | Closed |
| Max capacity | 0.15 m³ | 0.15 m³ |
| Max. capacity | 2000 kg | 2000 kg |
| Max Pressure | 23 Mpa - 230 bar | 23 Mpa - 230 bar |
| Material | HARDOX Steel | HARDOX Steel |
| For Excavators | 3.0÷4.0 Tons | 3.0÷5.0 Tons |
| Closed Dimension | 51 x 74 x 39.7 cm | 51 x 74 x 39.7 cm |
| Open Dimension | 68.5 x 117 x 39.7 cm | 68.5 x 117 x 39.7 cm |
| Weight | 120 kg | 150 kg |
