Biemmedue Foggy
Professional Nebulizer Units
230÷400V - 1700÷4000 W
70 bar - 6 ÷ 21 L/min
Warranty 2 years
Shipped on Pallet

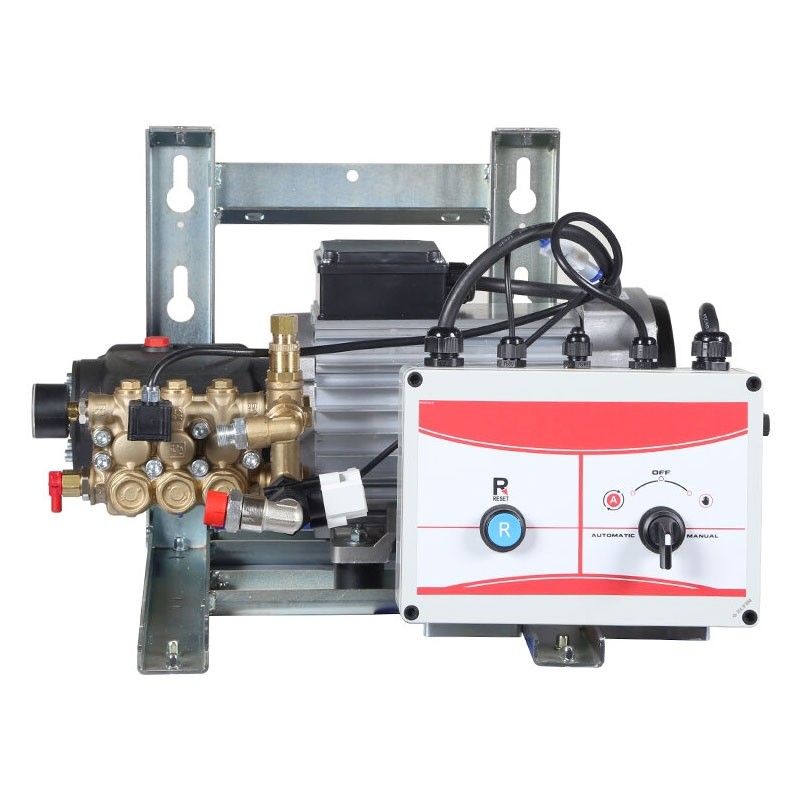

Biemmedue Foggy - Nebulizer units for professional use
These original Biemmedue Nebulizer Units are designed for Cooling, Humidification and Dust Abatement in animal farms or in all those difficult environments, in the presence of dust, humidity and in situations of poor ventilation.
Thanks to its 1450 rpm motor and the IP54 insulation class, these Professional Nebulizers are able to guarantee optimal performance in all conditions.
Functional specifications
High quality pumps and pistons
Biemmedue Foggy have high pressure pumps equipped with 3 ceramic pistons and bronze heads with oil bath connecting rods.
Respectively, the Pumps mounted are the IP 51 pump on the BM2 FOGGY 360M HD, the IP E2 pump on the FOGGY 720T HD and the IP 47 pump on the FOGGY 1260T HD model.
Management panel with microprocessor
A psychrometric temperature-humidity control panel is mounted on the Foggy Nebulizing Units , capable of managing the lack of water and making the operation of the cooling unit completely automatic.
Different Fixing Modes
These Coolers - Humidifiers can be installed on a shelf thanks to the rubber feet that can be purchased on request or they can be fixed to the wall using the optional accessories.
Technical specifications
The Foggy Nebulizing Units are equipped as standard with a kit of 2 10 + 5 micron filtration filters and a pressure gauge. The motor is electric and works at 1450 rpm with IP54 insulation class and high pressure pumps with ceramic pistons, bronze heads and oil bath connecting rods.
BM2 Foggy is also equipped with a thermal overheating valve and a pressure switch capable of blocking the operation of the nebulizer unit in the event of lack or shortage of water.
Ideal for animal farms or harsh environments in the presence of dust, humidity and lack of ventilation.
Features
- 1450 rpm engine
- 3 ceramic pistons
- Bronze heads
- Overheating Thermal Valve
- Incorporated pressure switch
- Material: stainless steel
- Standard equipment with filter kit and 10 + 5 micron pressure gauges
Endowment
- Filter Kit and 10 + 5 micron pressure gauge
Technical data
| FOGGY 360M HD | FOGGY 720T HD | FOGGY 1260T HD | |
| Code | 01FG16 | 01FG13 | 01FG15 |
| Pump | IP 51 | IP E2 | IP 47 |
| Stream of water | 6 L / min | 12 L / min | 21 L / min |
| Water pressure | 70 bar | 70 bar | 70 bar |
| Motor Power | 1.7 kW | 3.5 kW | 4 kW |
| Power Supply | 240 V | 400 V | 400 V |
| Type of Protection | IP 54 | IP 54 | IP 54 |
| Water Outlet Pipe Thread | 3 / 8M and 1 / 2M | 3 / 8M and 1 / 2M | 3 / 8M and 1 / 2M |
| Net weight | 37 Kg | 43 Kg | 50 Kg |
| Dimensions | 56 x 46 x 36 cm | 56 x 46 x 36 cm | 56 x 46 x 36 cm |
Technical data
| FOGGY 360M HD | FOGGY 720T HD | FOGGY 1260T HD | |
| Code | 01FG16 | 01FG13 | 01FG15 |
| Pump | IP 51 | IP E2 | IP 47 |
| Stream of water | 6 L / min | 12 L / min | 21 L / min |
| Water pressure | 70 bar | 70 bar | 70 bar |
| Motor Power | 1.7 kW | 3.5 kW | 4 kW |
| Power Supply | 240 V | 400 V | 400 V |
| Type of Protection | IP 54 | IP 54 | IP 54 |
| Water Outlet Pipe Thread | 3 / 8M and 1 / 2M | 3 / 8M and 1 / 2M | 3 / 8M and 1 / 2M |
| Net weight | 37 Kg | 43 Kg | 50 Kg |
| Dimensions | 56 x 46 x 36 cm | 56 x 46 x 36 cm | 56 x 46 x 36 cm |
