Speroni VSM 8
Stainless Steel Multistage Vertical Electric Pumps
Civil Industrial Sports Applications
€890.00
€729.51 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

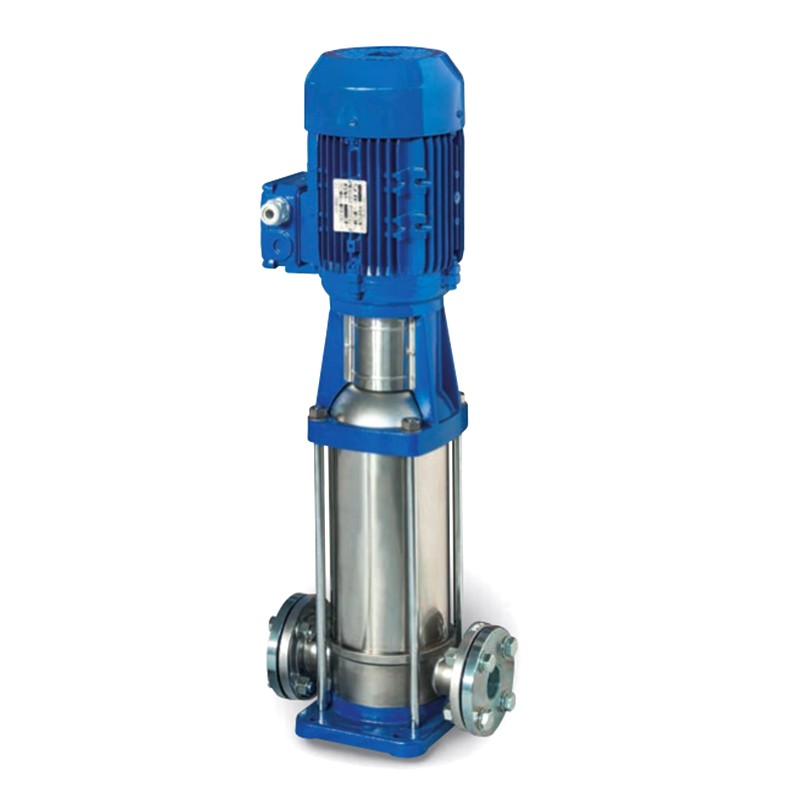

Speroni VSM 8 - Stainless Steel Vertical Electric Pumps for Civil and Industrial Applications
The Speroni VSM 8 multistage stainless steel vertical electric pump is a reliable solution for pumping liquids in various contexts. Thanks to its sturdy construction and the high-quality materials used, this pump offers excellent and long-lasting performance . Designed for civil and industrial applications, for high pressure washing systems , for irrigation , for agriculture , sports facilities , for fountains and for handling moderately aggressive liquids , free of solid or abrasive substances .
The motor of this pump is designed to adapt to different electrical power needs. The motor is a 2-pole induction electric motor with Class F insulation and IP 55 protection . It rotates at a speed of 2900 rpm, with a 230V single-phase power connection.
The Speroni VSM 8 pump is built with resistant and durable materials . The suction body , the delivery body , the impeller , the pump jacket , the upper cover , the lower cover and the motor shaft are made of AISI 304 stainless steel . The mechanical seals are made with silicon/silicon/viton , ensuring an effective seal.
Models available
The VSM 8 series includes several models, each with unique specifications and features to meet different user needs.
Selectable from the drop-down menu:
- VSM 8-3 - Single phase
- VSM 8-4 - Single phase
- VSM 8-6 - Single phase
Among the available models are the Speroni VSM 8-3 and VS 8-4 electric pumps with an engine power of 1.1 kW. Speroni VSM 8-6 has a slightly higher manometric head , reaching 62 m , compared to 30 m for the VSM 8-3 model.
For applications requiring greater power , the VS 8 three-phase models are available.
The Speroni VSM 8 electric pumps are ideal for intensive use , for civil and industrial applications .
Limitations of use
- Liquid temperature limit up to 35 °C for domestic use (EN 60335-2-41)
- Liquid temperature limit up to 110°C for other uses
- Ambient temperature up to 40°C
Motor
- Single phase 230 V
- 2-pole induction electric motor (2900 rpm)
- Class F insulation
- IP 55 protection
Materials
- Suction body: AISI 304 stainless steel
- Delivery body: AISI 304 stainless steel
- Impeller: AISI 304 stainless steel
- Pump jacket: AISI 304 stainless steel
- Upper cover: AISI 304 stainless steel
- Lower cover: AISI 304 stainless steel
- Motor shaft: AISI 304 stainless steel
- Mechanical seals: Silicon/Silicon/Viton
Hydraulic curve
Product Dimensions
Technical data
| Model | VSM 8-3 | VSM 8-4 | VSM 8-6 |
| Power Supply | 230V | 230V | 230V |
| Nominal power | 1.5 HP - 1.1 kW | 2 HP - 1.5 kW | 3 HP - 2.2 kW |
| Flange | DN 40 1'' 1/2 | DN 40 1'' 1/2 | DN 40 1'' 1/2 |
| Prevalence | from 19 to 30 m | from 26 to 41 m | from 39 to 62 m |
| Liquid flow rate | 83÷200 L/min | 83÷200 L/min | 83÷200 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F | IP 55 - F |
| Dimensions with packaging | 76.5 x 39.5 x 32 cm | 96.5 x 44.5 x 37.2 cm | 96.5 x 44.5 x 37.2 cm |
| Weight | 51.8kg | 62kg | 63kg |
Technical data
| Model | VSM 8-3 | VSM 8-4 | VSM 8-6 |
| Power Supply | 230V | 230V | 230V |
| Nominal power | 1.5 HP - 1.1 kW | 2 HP - 1.5 kW | 3 HP - 2.2 kW |
| Flange | DN 40 1'' 1/2 | DN 40 1'' 1/2 | DN 40 1'' 1/2 |
| Prevalence | from 19 to 30 m | from 26 to 41 m | from 39 to 62 m |
| Liquid flow rate | 83÷200 L/min | 83÷200 L/min | 83÷200 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F | IP 55 - F |
| Dimensions with packaging | 76.5 x 39.5 x 32 cm | 96.5 x 44.5 x 37.2 cm | 96.5 x 44.5 x 37.2 cm |
| Weight | 51.8kg | 62kg | 63kg |
