Munters GPmp 100
Hanging Hot Air Generator
LPG or Diesel 6600 m³/h

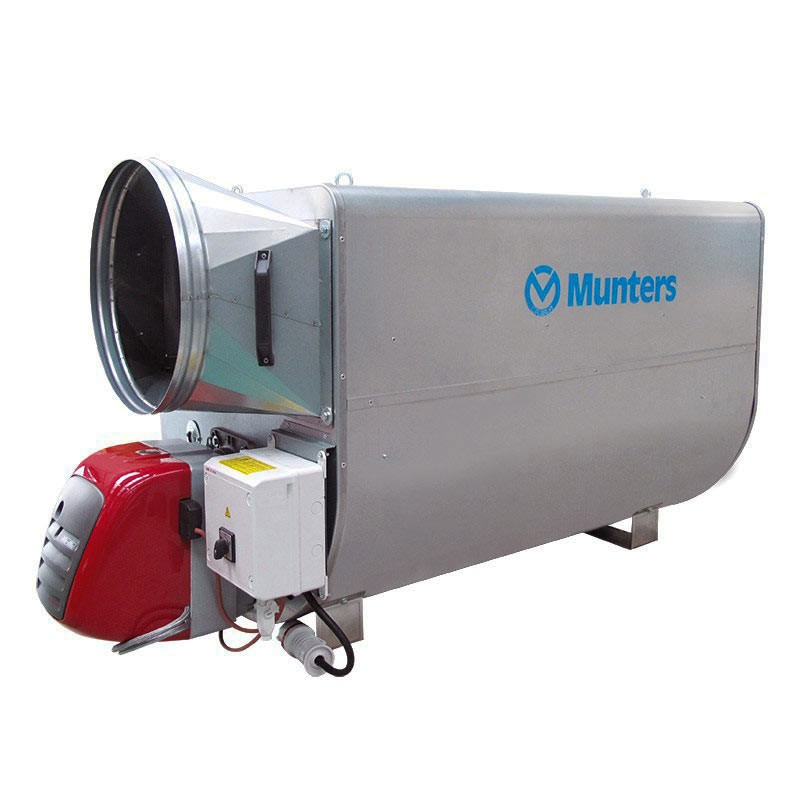

Munters GPmp 100 - Professional Hanging Hot Air Generator 6600 m³/h Diesel or LPG

Munters GPmp 100 is a hot air generator designed to provide powerful and efficient heating in large livestock farms and greenhouses , ensuring optimal conditions for growth and well-being and providing heat to areas up to 6600 m³/h . Thanks to its versatility, it is also ideal for heating large industrial spaces . Powered by diesel or LPG , this generator offers high performance and simple and safe installation , making it particularly versatile for various applications.

Munters is a global leader in the development and manufacturing of energy-efficient air conditioning systems.
for the growth and development of agricultural applications.

Available Models

The Munters GPmp 100 heat generator is available in two variants selectable from the drop-down menu:

• GPmp 100 Diesel - code 20821432EU
• GPmp 100 LPG - code 20821444EU

It can be configured with the following types of outputs:

• Straight exit
• T-Exit

Request a quote to choose the configuration that best suits your needs.

Technical Specifications

The Munters hot air generator is characterized by a robust and resistant construction . The weight, including axial fan and standard outlet, is 155 kg . GPmp 100 offers a maximum power of 102.4 kW (88,043 Kcal/h) and a steady state power of 93 kW (79,943 Kcal/h).

This three-phase heat generator has a nominal power of 1400W and an air flow of 6600 m³/h .

The IP55 protection class ensures protection against dust and water jets, while the type F insulation class guarantees effective thermal insulation.

Functional Specifications

The GPmp 100 generator is designed to offer high efficiency and versatility in various application contexts, including livestock and greenhouses. Its construction with corrosion-resistant materials , such as the Munters Protect coating and the stainless steel combustion chamber , ensures a long life over time.

This generator model is powered by diesel , natural gas or propane gas , with an efficiency of 91% when powered by diesel, ensuring high heat production with low fuel consumption.

In addition to the heating function, the unit can also be used during hot periods, thanks to the possibility of activating only the fan and using the generator as a simple air circulator .

Straight Exit

The straight outlet heat generator expels the produced air directly in a straight line, perpendicular to the generator outlet. This configuration is typically used when you want to heat a specific area or a single space in a direct and concentrated way.

T-Exit

The T-outlet heat generator allows the air flow to be divided into two directions opposite or parallel to the floor. The hot air is distributed more widely, covering a larger area and making it ideal for large rooms.

Fields of Application

• Medium sized environments
• Shipyards
• Greenhouses
• Farms

Watch the Video

Characteristics

• Three-phase
• Indirect combustion
• Maximum thermal power 100 kW
• Maximum gas consumption 9.77 kg/h
• Air flow 6600 m³/h
• Electric power 1400W
• Riello burner
• Thermal efficiency greater than 90%
• Munters Protect Bodywork
• Combustion chamber in AISI 430 stainless steel
• Pre-installed and calibrated gas/diesel burner
