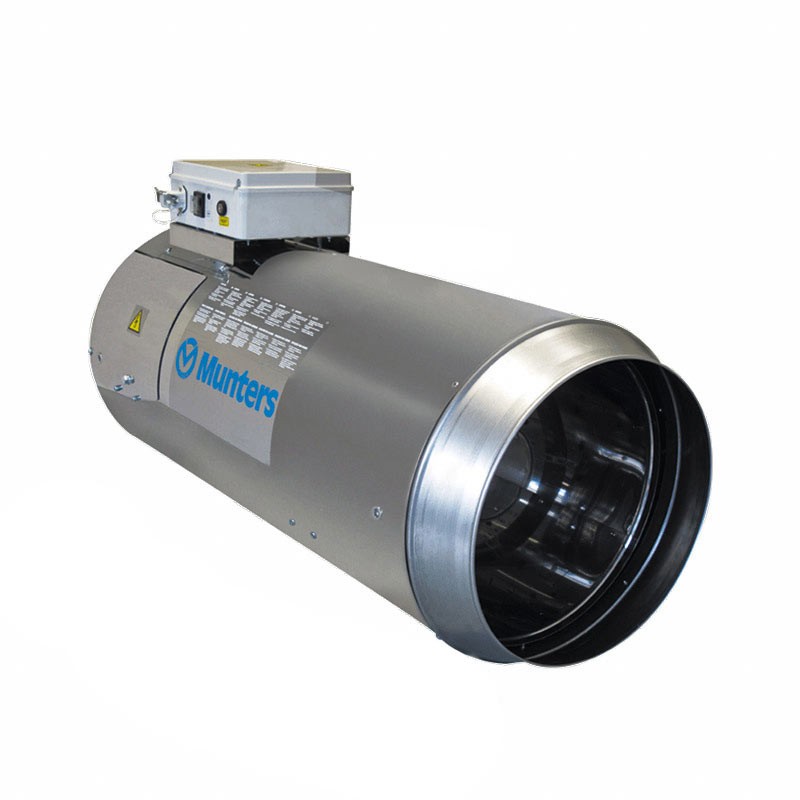

Munters GA95T
Hanging Hot Air Generator 6000 m³/h

Munters GA95T - Professional Hanging Hot Air Generator 6000 m³/h

Munters GA95T is a suspended hot air generator designed to provide powerful and efficient heating in large livestock farms and greenhouses , ensuring optimal conditions for growth and well-being and providing heat to areas up to 6000 m³/h . Thanks to its versatility, it is also ideal for heating large industrial spaces . Powered by LPG gas, the Munters GA95T guarantees excellent performance, simple and immediate installation and use in complete safety.

Munters is a global leader in the development and manufacturing of energy-efficient air conditioning systems.
for the growth and development of agricultural applications.

Technical Specifications

This Munters wall-mounted hot air generator is made of stainless steel , designed to ensure a long life even in humid environments. The electrical components are housed in an IP54- rated casing, making it resistant to dust and splashes of water.

The air flow of GA95T is 6000 m³/h , with a 1.5 mm nozzle. The device works with LPG gas, an operating pressure of 2 bar . and a variable consumption between 3.6 and 6.6 kg/h . This hanging heater has a thermal power that varies from 46 to 97 kW , equivalent to 39,000-83,400 kcal/h .

This 230V single-phase generator with 600W 4.5A power is designed to operate at altitudes between 0 and 1000 m .

Functional Specifications

The GA95T hot air generator is designed for professional and industrial applications, such as intensive agriculture , livestock farming and greenhouses . It works on the principle of direct combustion heating , where the air passes through a combustion chamber that houses the burner, allowing 100% of the fuel to be converted into heat.

To ensure safety , the generator is equipped with a double solenoid valve that regulates the opening and closing of the gas supply, preventing leaks in the event of a fault. In addition, a pressure sensor monitors the air flow and interrupts the gas supply in the event of an obstruction, avoiding the risk of overheating.

The device comes fully assembled, with an electric cable and a gas connection hose with pressure regulator, ready for use.

Upon request, a mechanical or electronic thermostat is available for more precise heating control.

• A = 1140 mm
• B = 473 mm
• C = 608 mm
• D = 378 mm

Fields of Application

• Farms
• Agriculture
• Industry

Characteristics

• Single phase
• Direct combustion
• Nominal thermal power 97 kW
• Maximum gas consumption 6.9 kg/h
• Gas pressure 2 bar
• Air flow 6000 m³/h
• Electric power 600 W
• Weight 32 Kg
• Dimensions 114 x 47.3 x 60.8 cm
• Built-in LPG burner
• Double solenoid valve
• Pressure sensor
• Electric cable
• Gas connection pipe
• Pressure regulator
• Mechanical or electronic thermostat (optional)
