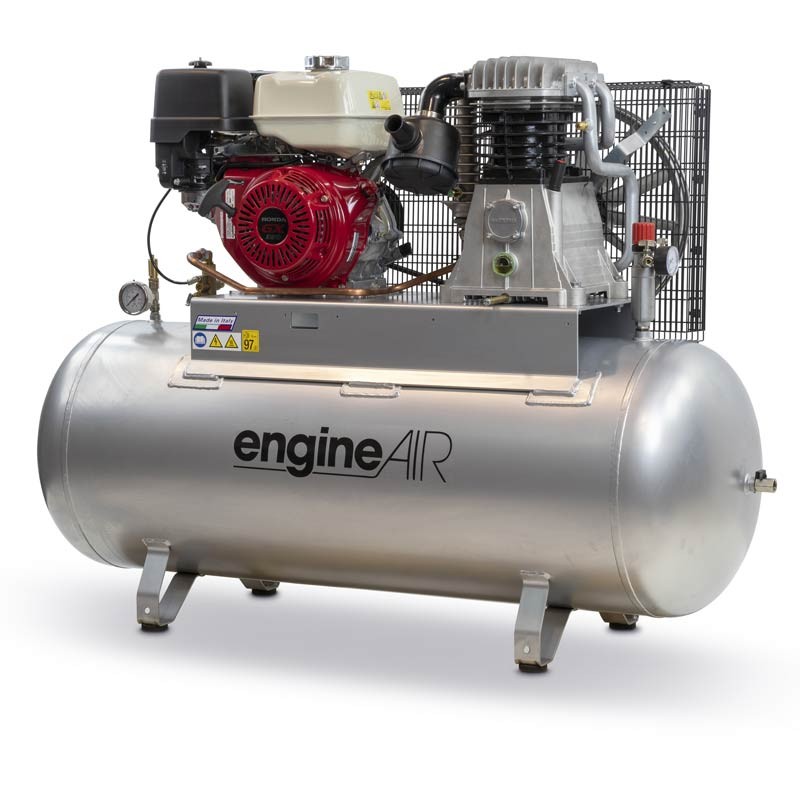

ABAC EngineAIR 12/270 LT
Petrol Compressor
10 / 14 / S ES

ABAC EngineAIR 12/270 LT - Petrol Compressor 10 / 14 / S ES

ABAC EngineAIR 12/270 LT is a compressor designed for professionals, available in versions with pressure of 10 bar, 14 bar or 14 bar with B7000 pump unit . This air compressor guarantees high reliability, stability and robustness thanks also to its fixed structure.

This compressor, part of the EngineAir range, has a 270 L tank and is equipped with a B6000B pump unit with a GX390 engine running at 1185 RPM in the 10 bar version, and 1110 RPM in the 14 bar version. The version with a B7000 14 bar pump unit is equipped with a GX390 engine running at just 1045 RPM.

These Abac compressors offer the following advantages:

• Petrol-powered for professional use
• High-performance pumping group B6000B or B7000
• 270 L tank
• Flow rate from 633 L/min to 972 L/min
• Fixed configuration

Available Models

• 633 L/min - 14 bar - EngineAIR 12/270 14 ES Petrol 1121440122
• 676 L/min - 10 bar - EngineAIR 12/270 10 ES Petrol 1121440119
• 972 L/min - 14 bar - EngineAir 12/270 S ES Petrol 1121440123

Functional specifications

Compressor with 270 L tank

ABAC EngineAIR 12/270 10 14 S Petrol are Abac petrol compressors with a fixed configuration . Furthermore, the 270 L tank allows for excellent air reserve.

B6000B or B7000 pumping group

The Abac Engine AIR is equipped with a high-performance B6000B pumping unit for the 14 ES and 10 ES models, which gives the compressor a notable air flow rate ( 633 L/min for the 14 bar and 676 L/min for the 10 bar), with a low rotation speed of 1110 RPM and 1185 RPM respectively. The S ES model is instead equipped with a B7000 pumping unit which gives an excellent air flow rate ( 972 L/min ) with a very low rotation speed of 1045 RPM .
This results in the compressor having significantly lower fuel consumption and a longer lifespan.

Honda GX390 engine

Equipped with the powerful and reliable Honda GX390 engine with OHV configuration and variable valve timing system (digital CDI), with easy and light starting. Horsepower 11.7 HP and power 8.7 kW .

Characteristics

• 270 L petrol compressor
• Honda GX390 engine
• Fixed Configuration
• Low Engine RPM
• Noise level 97 dB(A)
• Pressure 10-14 bar
