Abac B7000 500 FT10 FFO
Compressor with Dryer

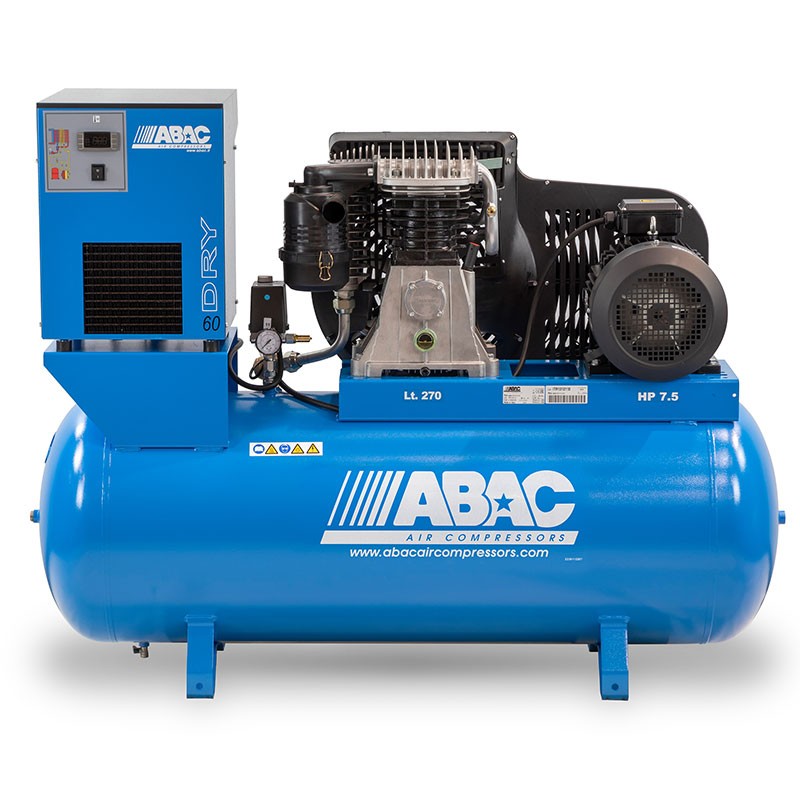

Abac B7000 500 FT10 FFO - Compressor with dryer

This Abac compressor is a 2-stage belt-driven compressor , complete with a 270 L or 500 L tank mounted dryer . Double compression ensures higher working pressure , with higher efficiency .

Abac B7000 270 FT10 FFO and Abac B7000 500 FT10 FFO and the respective versions with star-delta starting, are professional and industrial compressors perfect for applications such as painting , grinding , screwing . Professional quality machinery that combines the long tradition of reliability of Abac compressors with the performance of a B7000 pumping unit , the Abac B7000 500 FT10 FFOs consist of a convenient dryer powered separately at 230V.

Exploitable for the large production of dry air , this compressor dryer has been conceived with a design that can increase its performance.

Functional specifications

Two-stage compressor for high pressure

Abac B7000 500 FT10 FFO in the 270 and 500 L versions is a two-stage compressor. Let's now see, briefly, the operation of a double compression machine. With each rotation of the shaft the air passes from atmospheric pressure to an intermediate pressure ( I stage ), to be transferred into a second smaller cylinder ( II stage ) before being stored in the tank. The cast iron cylinder ensures a longer life for the Abac compressor. This double compression ensures greater performance , at higher operating pressure .

Professional compressor: high performance

The B7000 pumping unit is connected to the Abac compressor motor through the belt. The design of the belt cover improves the flow of cooled air on the pumping unit of the Abac B7000 500 FT10 FFO compressor and on the version of the same with YD star-delta start .

Finned cooler

This chiller design is designed to deliver lower temperature compressed air.

Oil lubricated compressor

Abac oil-lubricated compressors use a special lubricating oil to reduce friction between moving parts and prevent wear .

Dryer powered separately at 230 V

The air treated through a compressor dryer comes out perfectly dehumidified . Abac B7000 270 FT10 FFO and YD Abac B7000 500 FT10 FFO and YD are perfect as a source of compressed air for use in pneumatic and industrial applications. Dehumidified air is a clean and ecological source of energy. The dryer on these Abac compressors is pre-installed and connected , with bypass . The dryer mounted on these belt compressors is tested and reliable .

Technical specifications

The Abac B7000 270 FT10 FFO and Abac B7000 500 FT10 FFO compressors can be selected from the drop-down menu are available in the versions:

• Direct start : Direct start is simple, requiring only a contactor and overload protection . The starting current is high, equal to 6-10 times the rated motor and a high starting torque.
• YD star-delta starting: Star / delta starting is used to limit the inrush current . The starter motor consists of three contactors, an overload protection and a timer. The motor is started with star connection and after reaching 90% of the nominal value .

Models available

• Abac B7000 270 FT10 FFO - 270 L tank with direct start
• Abac B7000 500 FT10 FFO - 500 L tank with direct start
• Abac B7000 500 FT10 FFO YD - 500 L tank with star-delta starting
