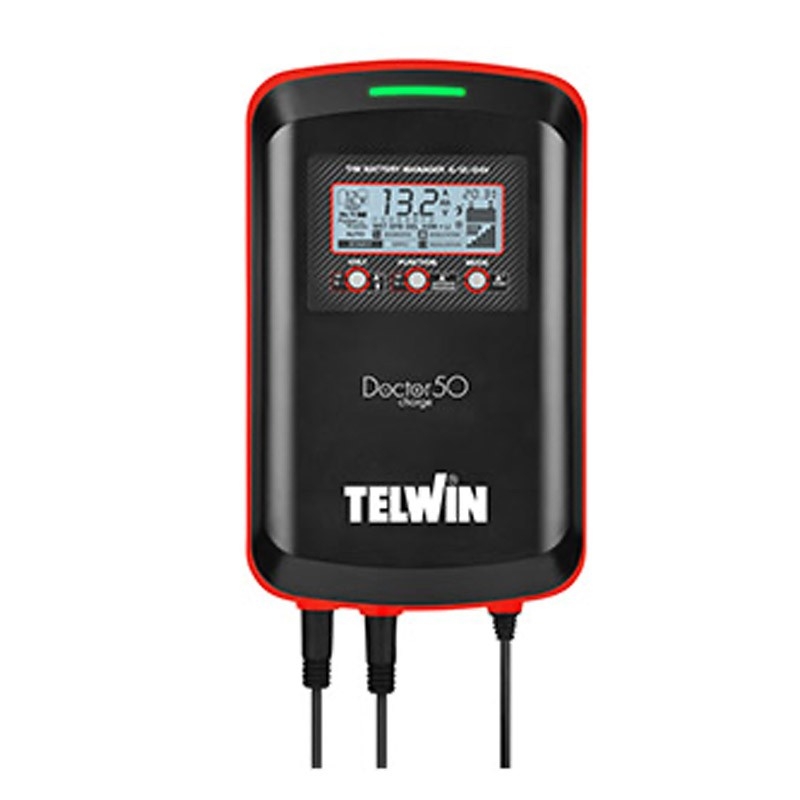

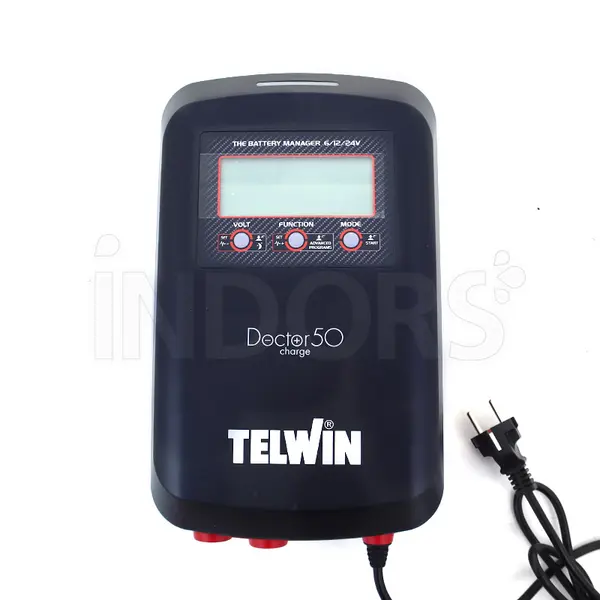

Telwin Doctor Charge 50
Multifunctional battery charger cod. 807613

Telwin Doctor Charge 50 - Multifunctional battery charger cod. 807613

Multifunctional electronic battery charger called precisely "BATTERY MANAGER" , for the complete maintenance of batteries WET, GEL, AGM, MF, PbCa, EFB and Li at 6/12/24V and for support activities in interventions on vehicles carried out in workshops, body shops and dealerships.

Main Features Telwin Doctor Charge 50

1. Automatic CHARGING AND MAINTENANCE of batteries with PULSE TRONIC technology even in difficult environmental conditions (low temperatures);

2. BOOST function for quick battery charging
3. COLD function for charging and maintaining batteries at low temperatures
4. Stable POWER SUPPLY for diagnostic activities (BSU), during battery changes (SUPPLY) and to keep the batteries of vehicles displayed in showrooms healthy
5. RECOVERY function for the recovery of sulphated or very discharged batteries and EQUALIZATION function, for restoring optimal functionality with periodic regeneration
6. TESTER to check terminal voltage and starting capacity (CCA) and check the operation of the vehicle's alternator;
7. Cable stretching compensation function ;
8. Protection against overload, short circuit and reverse polarity

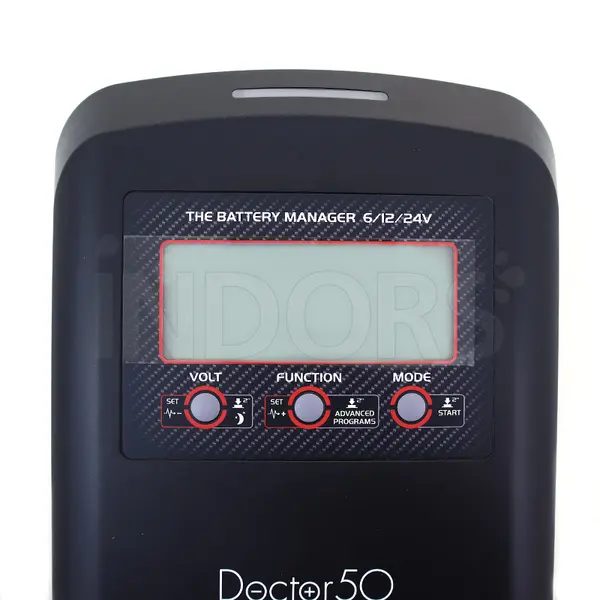

9. LCD screen
10. Implement PFC

Watch the video

Indicative video regarding use and functions of the machinery.
NB In the video you can find the old version of Telwin Doctor Charge 50, which differs from the new Telwin 807613 on an aesthetic level.

Characteristics

• Electronic control of the charging process PULSE TRONIC
• POWER STREAM technology
• Based on SMPS (Switch Mode Power Supply) technology
• In cases of blackouts or repetitive uses , Doctor Charge 50 keeps the latest settings in memory.
• Multiple protections present
• Implement PFC

Power Stream

The innovative technology POWER STREAM Made in Telwin guarantees superior performance, up to 50% more than traditional chargers .

Power Stream Technology is the result of a particular development of the SMPS (Switch Mode Power Supply) inverter technology applied by Telwin to the Automotive world, and more precisely, applied to the charging and maintenance of vehicle batteries such as motorcycles, cars, vans, trucks, buses, construction machinery, boats, motorboats, etc.

PowerStream, exploiting the peculiarities of the SMPS inverter solution , leads to a significant reduction in the dimensions and therefore in the overall dimensions of these devices, making them easy to transport and place; at the same time, the absence of a "traditional" transformer also leads to a reduction in weight.

Furthermore, Telwin PowerStream technology provides:

• greater efficiency in transferring energy to the battery compared to traditional chargers from the mains supply to the batteries
• significant reduction in energy loss due to heat dissipation of the components due to their overheating
• significant reduction in energy costs which can be seen when comparing the power consumption of traditional devices, which are significantly higher, compared to the lower consumption of devices with PowerStream technology, with the same power supplied to the load
• faster charging and longer healthy life of the batteries determined by the great ability of the electronics to monitor, and possibly correct instantly and automatically, the correct functioning of the process of transferring energy to the batteries, safeguarding their functionality at all times

Pulse Tronic

PULSE TRONIC technology guarantees optimal battery charging through 8 phases. Charging and maintenance programs in Pulse Tronic dedicated to the selected battery technology which through a precise moment by moment diagnosis of the battery conditions together with specific interventions aimed at restoring the best operation . PulseTronic technology, through intelligent monitoring and using particular waveforms (pulses) , manages to maintain the optimal charge without generating overheating or degrading changes to the chemical structure of the battery, even for prolonged periods.

The Pulse Tronic charging phases of Telwin Doctor Charge 50

1. CHECK check the battery conditions and verify the correctness of the voltage set on the display
2. DESULFATION detection and recovery of sulphated batteries; the pulses allow sulphates to be removed from the lead plates, restoring the initial capacity
3. ANALYZE analysis of the battery status to check whether the battery is faulty or not
4. MAIN CHARGE recharges with maximum current until it reaches 80% of the battery capacity
5. FINE CHARGE charging with decreasing current up to 100% of the battery capacity
6. VERIFY verification cycle to check if the battery holds a charge
7. FLOAT maintenance of charge at constant voltage
8. PULSE restoration of optimal pulse charge

Which Batteries Recharge at 6/12 Volt

• WET
• GEL
• AGM
• MF
• PbCa
• EFB
• There
