Trotec PAC-C 1500 S WiFi
3-in-1 Camping Air Conditioner

Trotec PAC-C 15000 S WiFi - 3-in-1 Portable Camping Air Conditioner

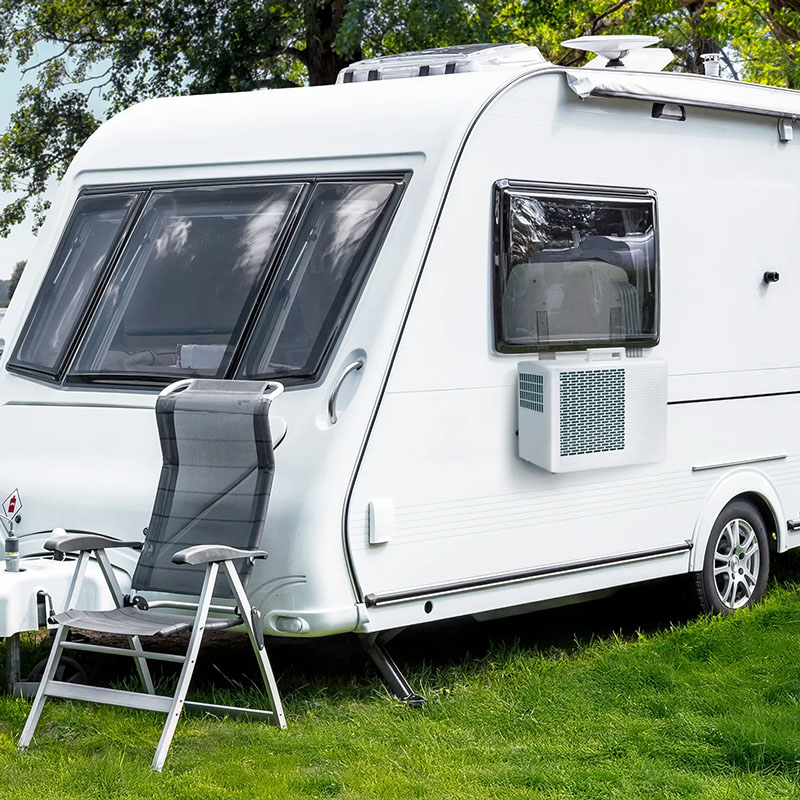

The Trotec PAC-C 1500 S WiFi is a 3-in-1 camping air conditioner designed specifically for use in campers and caravans , ideal for enthusiasts who require reliable performance in a compact space. This split device with an outdoor unit combines cooling , dehumidification , and ventilation in a single compact system, ensuring a comfortable and healthy indoor climate during extended trips. Thanks to integrated condensate evaporation, the PAC-C 1500 S minimizes manual maintenance, while the quiet night mode ensures discreet operation while you rest.

With a cooling capacity of 5000 Btu/h ( 1.5 kW ) and an energy consumption of 0.56 kW , this air conditioner is designed for rooms from 12 m³ to 37 m³ , corresponding to rooms of approximately 15 m² . The system uses environmentally friendly R290 refrigerant , compliant with European regulations, guaranteeing high performance with minimal environmental impact.

Technical specifications

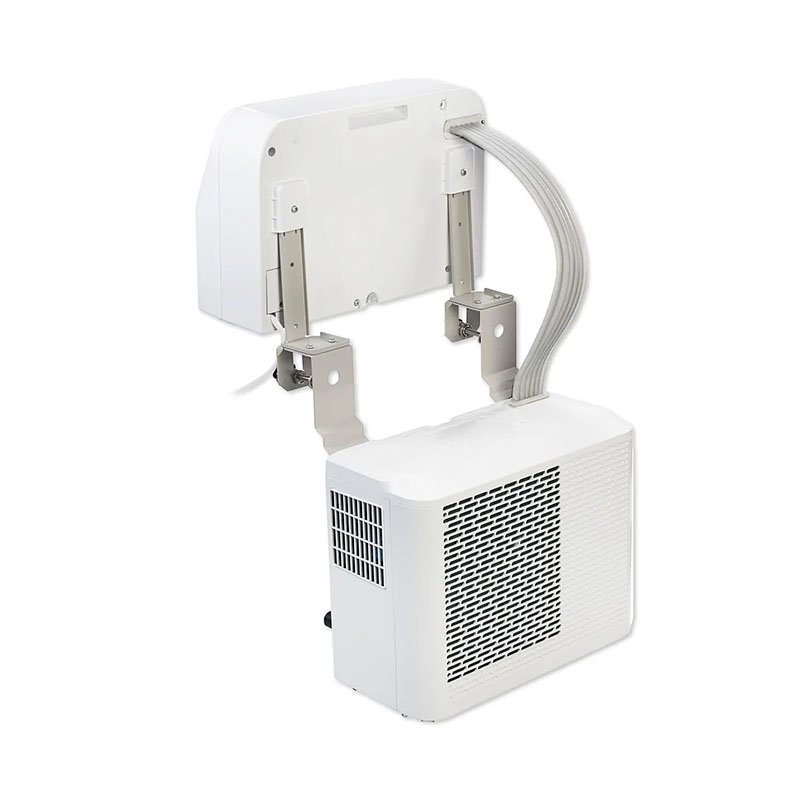

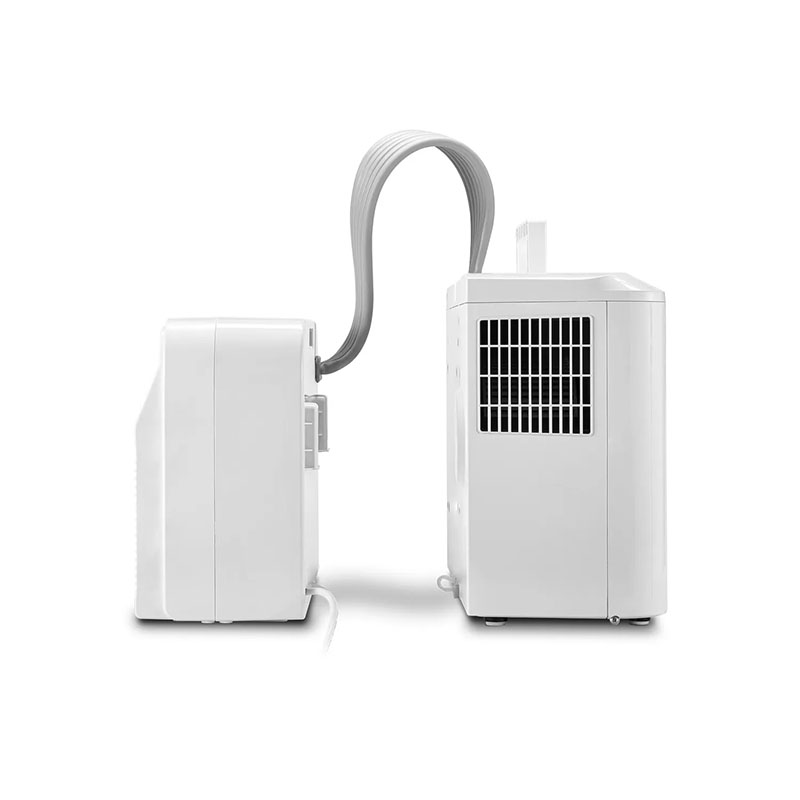

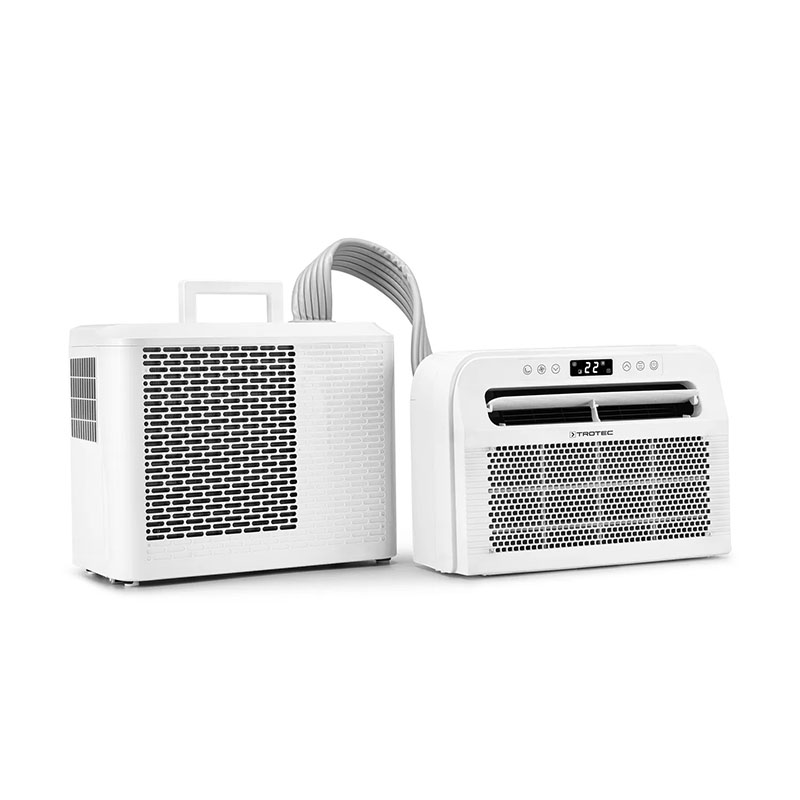

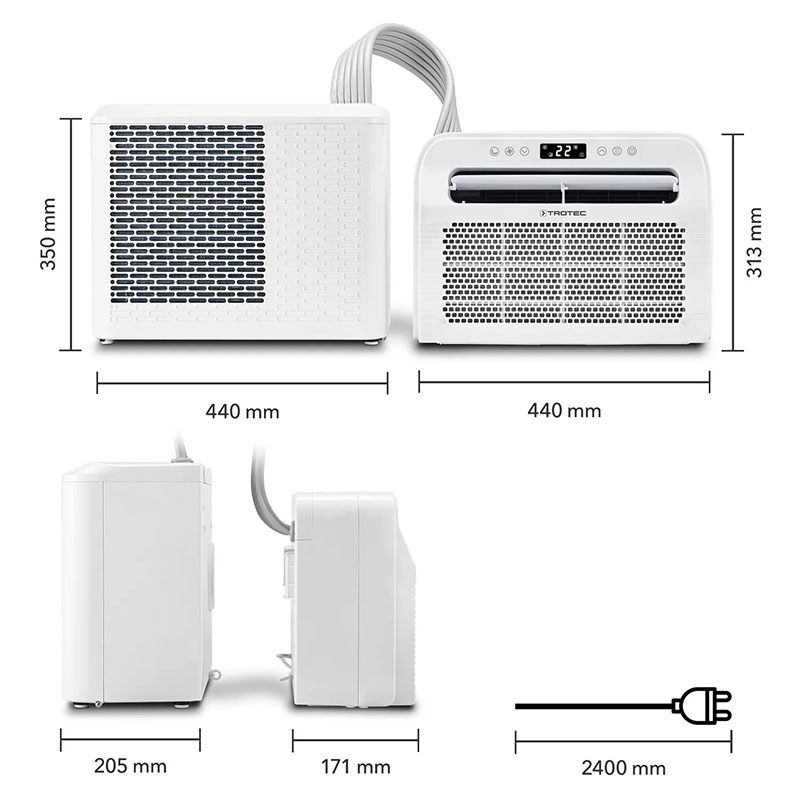

The PAC-C 1500 S is a split air conditioner consisting of an indoor unit , installed inside the camper or caravan, and an outdoor unit containing the condenser and heat exhaust system. The two units are connected via an integrated 1 m cable , simplifying installation without the need for additional piping. This design allows for reduced internal space while maintaining high cooling and dehumidification performance.

The closed refrigerant circuit uses R290 , an environmentally friendly refrigerant with low GWP (0.02) and CO2 equivalent of 0.0000026 t, with a suction side pressure of 0.8 MPa and a discharge side pressure of 2.8 MPa. The refrigerant quantity is 130 g , sufficient to guarantee efficient cooling without frequent recharging. PAC-C 1500 S operates on a 230V single-phase power supply, with a power consumption of 0.56 kW , and is designed for environments with external temperatures between 21 °C and 43 °C , maintaining the internal temperature adjustable between 16 °C and 30 °C .

The maximum air flow reaches 280 m³/h , distributed via a radial fan with two selectable speeds. The indoor unit's noise level is 63 dB(A) , while the night mode reduces noise to a minimum, allowing for a peaceful sleep. The device is classified as energy class A and features an automatic fault diagnosis system and an automatic function , which optimizes operation based on internal and external conditions.

Functional specifications

High performance cooling with external unit

The cooling function quickly lowers the internal temperature and keeps it stable thanks to the automatically regulated compressor. The outdoor unit expels accumulated heat, while the indoor unit distributes cool air evenly. This split system allows for professional performance even in small spaces, optimizing energy consumption and improving comfort .

Automatic dehumidification with integrated evaporation

The dehumidification mode reduces indoor relative humidity to as low as 0.5 L/h , preventing condensation and mold. Automatic condensation evaporation channels water from the indoor unit to the outdoor unit, where it evaporates on the heat exchanger, eliminating the need for manual intervention. This system ensures continuous operation even during extended periods of use.

Uniform ventilation and swing function

The fan function recirculates air without altering its temperature, distributing it evenly through the swing function , which automatically moves the grilles. The two-level adjustable airflow allows you to adjust the speed to your needs, improving interior comfort.

Silent night mode

Night mode reduces the fan speed, keeping the air conditioner quiet without compromising the desired temperature. Ideal for professional campers and families, it ensures a comfortable environment while sleeping, reducing perceived noise levels.

Digital control and WiFi remote management

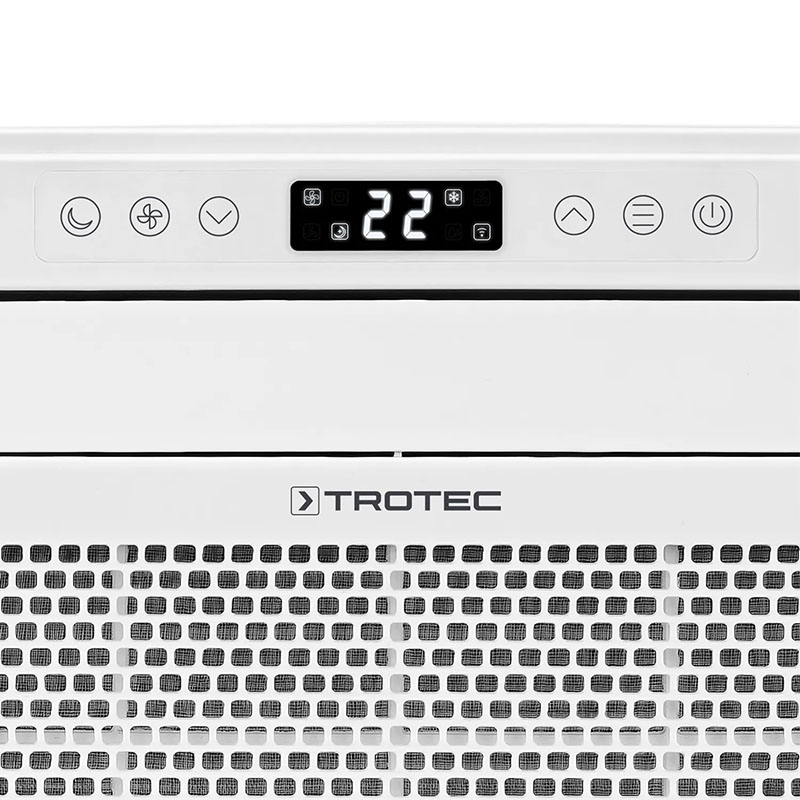

The PAC-C 1500 S features an LED display , membrane keys , and an integrated room thermostat for real-time temperature monitoring. Thanks to WiFi connectivity and the Trotec Assistant app , you can manage all functions remotely , program timers for up to 24 hours , and select automatic modes to optimize energy consumption and comfort.

Safety and professional maintenance

The air conditioner features a washable air filter , a condensation drain pan , overheat protection , and warning signals on the display , ensuring safe and reliable operation. The robust design with a durable plastic housing and integrated handle allows for quick transport and installation in campers or caravans. The device complies with European safety and energy efficiency regulations , making it suitable for even intensive use.

Characteristics

• Split system air conditioning
• 3-in-1 function: cooling, dehumidification and ventilation
• Single-phase 230V power supply
• Cooling capacity 5000 Btu/h (1.5 kW)
• Energy consumption 0.56 kW
• Air volume 280 m²/h
• For rooms 15 m² / 37 m³
• Adjustable temperature from 16°C to 30°C
• Ecological refrigerant R290
• Automatic evaporation
• Noise level 63 dB(A)
• Night silent mode
• LED display with membrane keys
• Compatible with WiFi and Trotec Assistant app
• 24-hour programmable timer
• Swing function
• Washable air filter

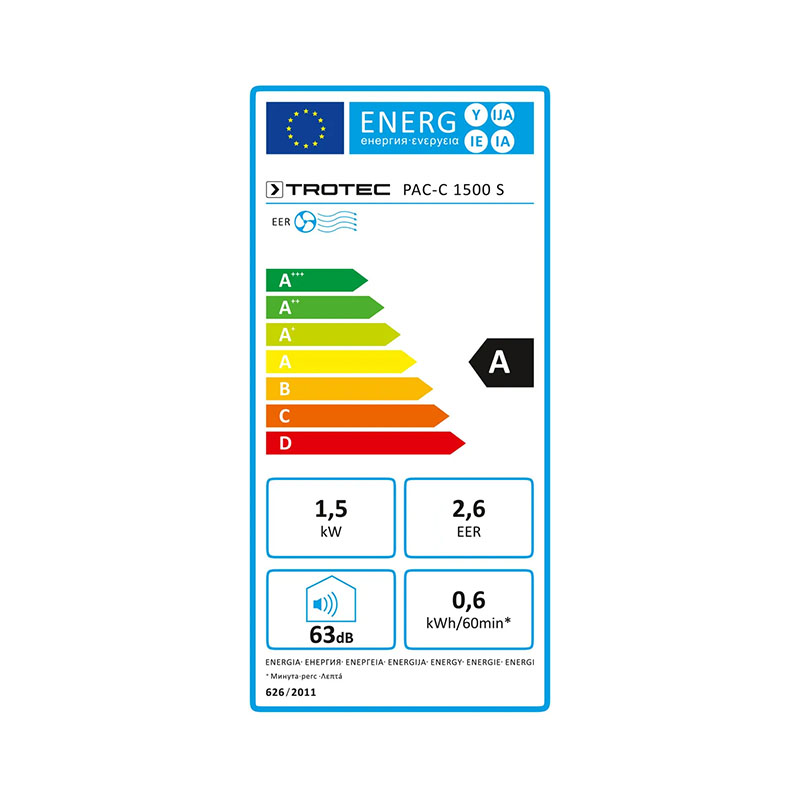

• Energy class A

Standard Equipment

• Unit connection cable 1 m
• Washable air filter (already installed)

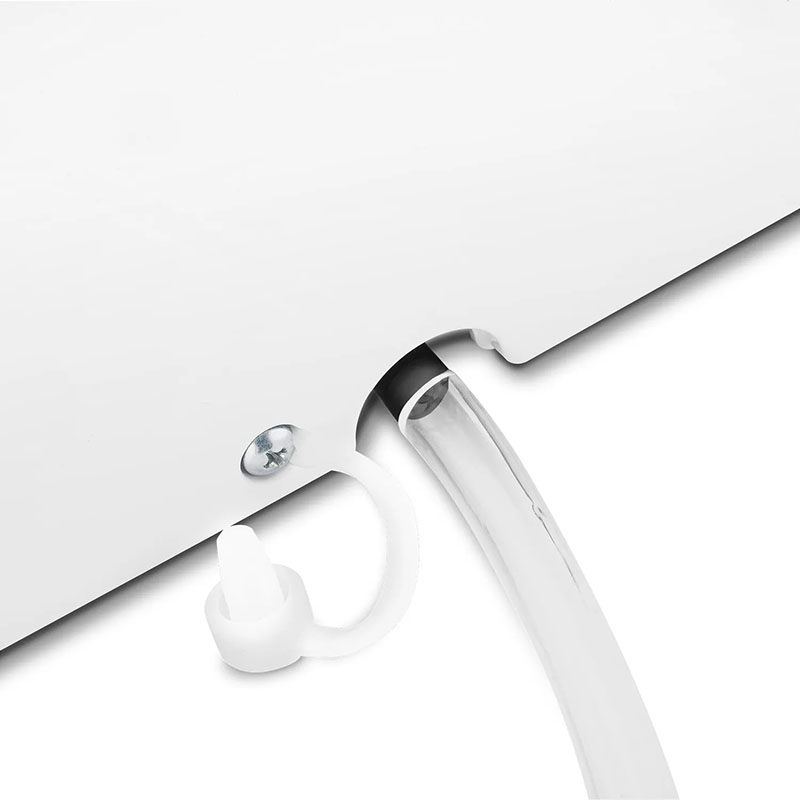

• Flexible condensation hose
• Condensation collection tray

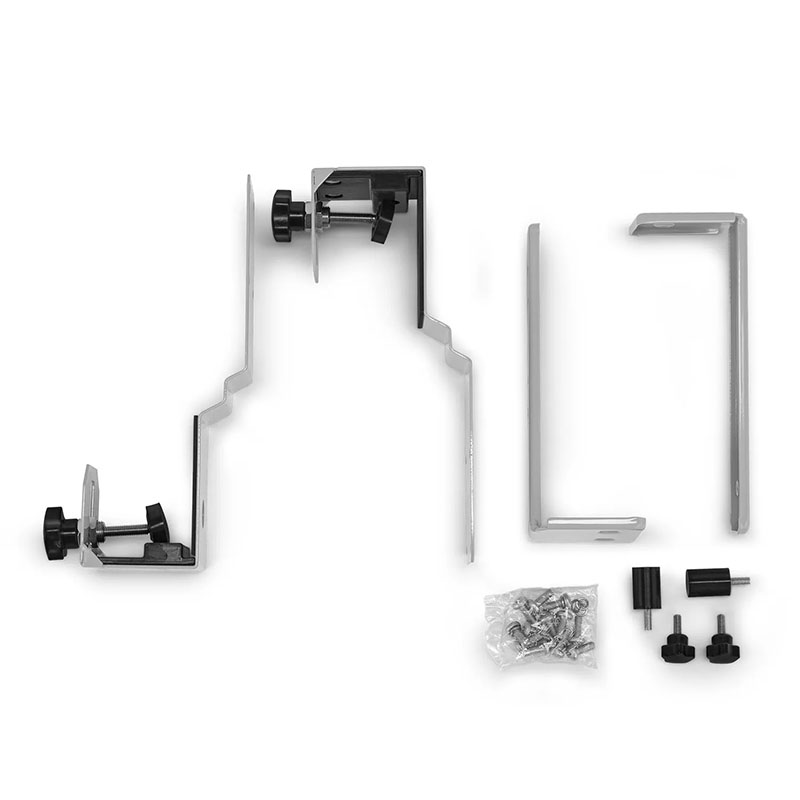

• Mounting screws
