KTC KPM 5H
VITE Compressor
Petrol 10 bar

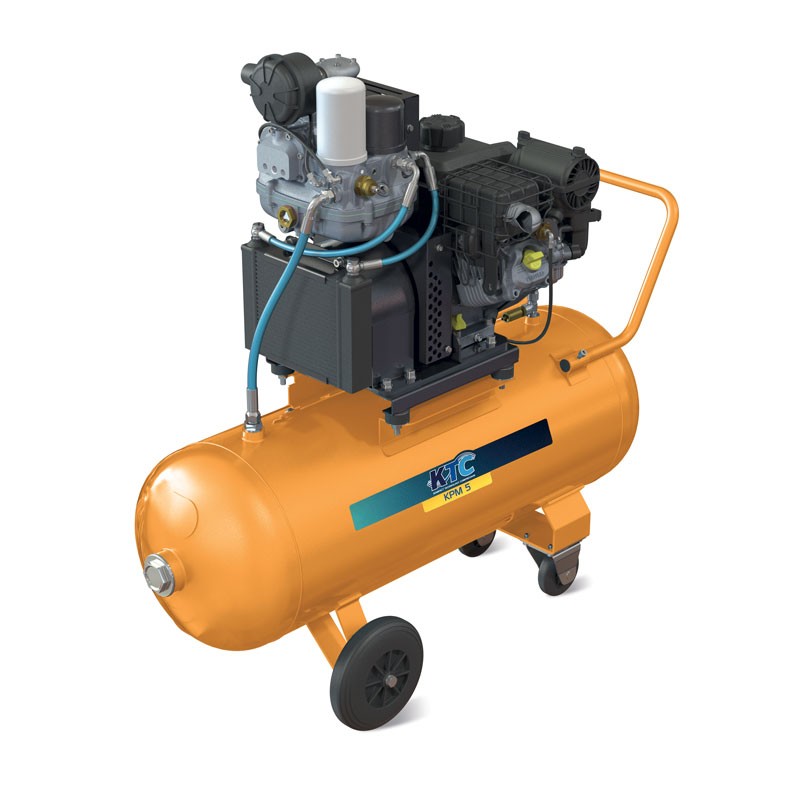

KTC KPM 5H - 7.1 HP Petrol Screw Compressor for Professional Use

KTC KPM 5H is a petrol -powered screw air compressor , ideal for applications in environments without an electrical network. This professional compressor is equipped with a 7.1 HP Briggs & Stratton Vanguard engine, guaranteeing constant and reliable power. The VMC Adam 60 V60 screw unit allows an effective air flow rate of 530 L/min at an operating pressure of 10 bar . The machine is designed for optimal mobility, thanks to the reinforced frame and large diameter puncture-proof wheels , which facilitate movement on difficult or uneven terrain.

All KTC compressors are entirely designed and built in Italy , with high quality components and Made in Italy workmanship.

Technical specifications

This lubricated compressor is equipped with a 4-stroke petrol-powered internal combustion engine , with a nominal power of 5.3 kW (7.1 HP) and manual recoil start . The VMC Adam 60 V60 rotary screw ensures stable and continuous air production , with an effective flow rate of 530 L/min and an operating pressure of 10 bar .

The 90 L air tank ensures adequate reserve to maintain constant output pressure. The 3.6 L petrol fuel tank ensures a good level of autonomy during use. The noise level is 97 dB(A) and the machine is equipped with a G 1/2'' quick coupling , which allows immediate connection of pneumatic tools.

Functional specifications

Fuel saving and emission reduction

The automatic engine speed control system intervenes during the compression phase to increase the revs, ensuring that the working pressure is reached quickly, and automatically slows down when the maximum pressure is reached. This intelligent control optimizes fuel consumption and reduces emissions.

Oversized oil radiator

This professional compressor is equipped with a large oil radiator that ensures efficient dissipation of heat produced during operation, maintaining the system temperature within safe limits and preventing overheating even during prolonged use.

Puncture-proof wheels for transport on difficult terrain

The robust construction with oversized puncture-proof wheels ensures excellent mobility even on rough terrain, making it easy to move the unit around construction sites or difficult outdoor environments without the risk of punctures or damage.

Quick coupler for air tools for fast and safe connections

The quick connect coupling allows for quick and easy connection of air tools, reducing set-up time and increasing operational efficiency during professional activities.

Why choose a screw compressor

High performance

Screw compressors, such as KTC’s KPM 5H, offer continuous air production without the interruptions typical of piston models. The volumetric efficiency of the airend reduces idle cycles and increases productivity.

Excellent air quality

The screw system ensures a stable, pulsation-free airflow , ideal for tools that require constant pressure . This improves precision and reduces the risk of malfunctions.

Great Reliability

The reduction of mechanical stress, the quality of the Vanguard engine and the construction simplicity of the airend ensure long operating life , reduced maintenance and maximum machine availability even in critical conditions.

Characteristics

• Professional screw compressor
• B&S 5.3 kW - 7.1 HP internal combustion engine
• Working pressure 10 bar
• Fuel tank 3.6 L
• 90 L air tank with 530 L/min flow rate
• Adam 60 V60 screw group
• High technical quality Made in Italy
