Trotec IDE 50
Professional Diesel Hot Air Generator

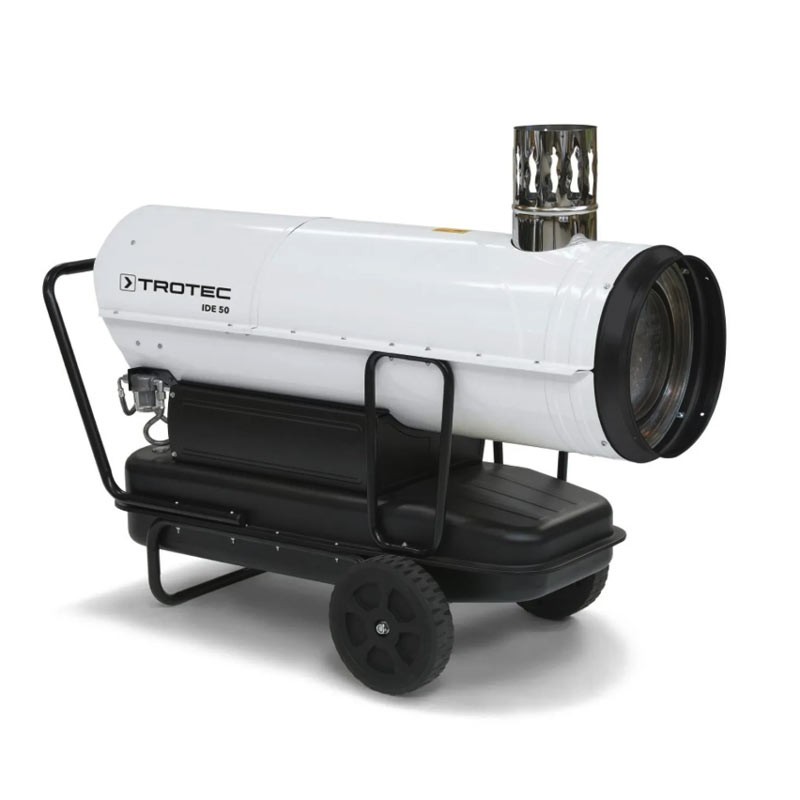

Trotec IDE 50 - Indirect-Fired Diesel Hot Air Generator

The Trotec IDE 50 is a professional indirect diesel heater , designed to provide reliable and flexible heating in industrial and construction environments, as well as in large workshops and warehouses. This device combines power and robustness in a compact design, designed to ensure constant and immediate heat even in the most demanding environments. Thanks to its 50 kW heating output , the IDE 50 produces a dry hot air flow of up to 2000 m³/h , offering rapid and uniform heating without contamination from fumes or combustion residues. Its durable construction and the possibility of prolonged use make it the ideal choice for professionals who require high performance in harsh operating conditions and in spaces exposed to the elements.

The IDE 50 stands out for its ultra-mobility: the compact and lightweight design , combined with sturdy wheels , a support bar and an ergonomic handle , allows it to be easily moved between different workstations. The heater is equipped with an integrated 69 L fuel tank with a level indicator, while the double-layer painted steel casing ensures protection from impacts and external agents. The optional connection to an external thermostat up to 25 m allows precise temperature control even in large or difficult-to-access spaces.

TECHNICAL SPECIFICATIONS

The IDE 50 diesel heater operates on a single-phase 230V power supply, consuming just 900W for the integrated fan. The flame is fueled by professional liquid fuels such as diesel , EL fuel oil , kerosene , and low-sulfur fuel oil . The high-quality fuel pump ensures a constant flow of fuel to the combustion chamber, while the external filter facilitates maintenance and ensures smooth operation even with variable fuel qualities. The 69L tank , equipped with a fill level indicator, allows for immediate monitoring of the amount of fuel available, optimizing operational management during prolonged heating sessions.

In terms of performance, the IDE 50 is capable of producing a flow of hot air of up to 2000 m³/h with adjustable temperatures between -20°C and 45°C . The machine is designed for indirect heating , ensuring clean, dry heat thanks to the separation of the ambient air from the combustion chamber. The stainless steel housing , electronic flame protection, and overheating safety system ensure reliable and safe use even in complex and professionally demanding environments.

FUNCTIONAL SPECIFICATIONS

Safe and Clean Indirect Heating

The IDE 50 's indirect heating allows you to supply hot air without contaminating the environment with fumes or combustion residues. The air to be heated passes through the combustion chamber's heat exchanger, completely separating the combustion gases from the intake air. This system is ideal for workshops , warehouses , construction sites , and areas where people or animals are present, as well as for accelerating the drying of building materials or for applications in environments with a risk of fire from flammable substances . The option of a flue gas exhaust pipe also allows the IDE 50 to be installed even in closed spaces without compromising safety.

Precise Thermal Control

The generator features a built-in thermostat that allows for continuous temperature adjustment. For complex applications, an external thermostat can be connected up to 25 m away, ensuring the ability to monitor and adjust the temperature in remote or large spaces, optimizing energy efficiency and heat distribution.

Mobility and Ease of Transport

Designed for maximum convenience, the IDE 50 features a lightweight trolley with sturdy wheels , a support bar , and an ergonomic handle , allowing for quick movement between different work environments. This feature makes the generator extremely versatile, suitable for construction sites, workshops, and warehouses where flexibility is essential.

Advanced Security

The Trotec IDE 50 integrates electronic flame protection and overheating protection systems , together with a stainless steel combustion chamber , ensuring safe operation even during intensive use. The robust and impact-resistant housing helps maintain the machine's reliability under any operating conditions.

Powerful and Silent Ventilation

The five-blade axial fan ensures a constant air flow of up to 2000 m³/h , distributing heat evenly in even the largest spaces. Despite the powerful air flow, the heater maintains a low noise level of 79 dB(A) at 1 m, allowing for comfortable use even in professional settings where noise can be a critical factor.

Characteristics

• Indirect diesel heater
• Single-phase 230V power supply
• Consumption 900 W
• Thermal power 50 kW
• Tank capacity 69 L
• Integrated thermostat and connection for external thermostat up to 25 m
• Indirect heating
• 5-blade axial fan
• Trolley with carrying handle
• Operating temperature -20°C to 45°C
• Noise level 79 dB(A) at 1 m
