Helvi SpotWeld 22E
Portable spot welder 2.3 kW

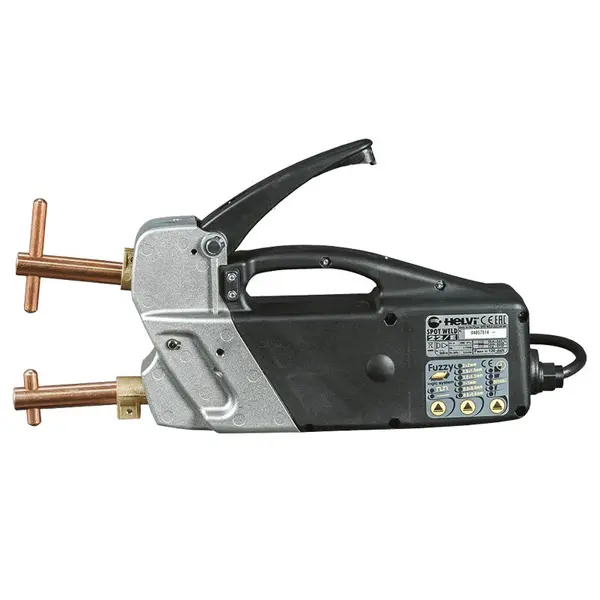

Helvi SpotWeld 22E - Portable spot welder 2.3 kW cod. 99500022

The Helvi SpotWeld 22E portable spot welder cod. 99500022 is a versatile and reliable solution for spot welding operations. This machine is designed to be plugged directly into a grounded power outlet, offering great operational flexibility even in difficult locations.

One of the distinctive features of this spot welder is its ability to adjust the spot welding time through an electronic control . This functionality allows operators to precisely adapt the machine to specific welding needs, ensuring optimal results.

Operator safety is a priority, and the Helvi SpotWeld 22E cod. 99500022 is designed with a high insulation transformer, ensuring a safe and secure working environment. This feature is essential to prevent accidents and ensure peace of mind during use.

Functional Specifications

Professional spot welder

The 50% power is 2.3 KW, while the maximum spot current is 6300 A with an accuracy of 1.5%. The maximum force of the electrode, at a pressure of 6 bar, is 2 + 2 / Ø 6 + 6 mm . This machine is capable of making 3,00 stitches per square millimeter on materials with a thickness of 1 + 1 mm .

Strong and precise welding

A spot welder such as the Helvi SpotWeld 22E , or spot welder, is a machine used to make spot welds on thin metallic materials. This welding technique involves applying a high electric current to a small contact area between two pieces of metal, thus creating a strong, precise weld .

Portable stapler

Helvi SpotWeld 22E cod. 99500022 is easy to transport thanks to its dimensions 10 x 44 x 18 cm with a weight of 11.1 kg .

Types of welding possible with Helvi SpotWeld 22E

SPOT WELDERS : Spot welders, electric resistance spot welders or also called pressure spot welders, generate heat at the points of contact between two metal parts due to electrical resistance. The heat developed by the current is proportional to the electrical resistance of the conductors. Spot welding is generally used to weld steels and is carried out in three stages:

1. The electrodes are brought close to the surface of the parts to be welded and the necessary pressure is exerted to compress the parts together and a predetermined current is passed through the electrodes.
2. Welding control occurs by regulating the current intensity and the time during which the current passes through the contact point.
3. The electrodes are moved away from the surfaces of the piece, which are thus joined by a small molten and solidified volume. At the point of contact between two metal objects the resistance is greater than that of the metal, therefore the passage of current causes the area near the contact to overheat and if the current is sufficiently high the fusion and therefore the welding of the two objects occurs.

Fields of application

• Light industry

• Maintenance services

Characteristics

• Portable stapler
• 25 A slow-blow fuse
• Power at 50% of 2.3 kVA
• Max power 13 kW
• Portable Size

• THERE IS
• Certification
• EAC
• Single phase
• Conventional Control
• Spot
• Touch and Weld

HELVI: Italian excellence for welding

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .
