Svelt Jolly from 1.81 to 11.67 m.
Professional Modular Scaffolding
Working height from 1.81 to 12.62 m
Base size 2 x 1.05 m
200 Kg/m² - EN 1004.1.2
Warranty 5
years
14 days to change your mind
Svelt Jolly - Professional Modular Aluminum Scaffolding
The Svelt Jolly Aluminium Scaffolding suitable for professional and domestic use has a 2 x 1.05 m base and is made up of modular units from 1.81 m up to 11.67 m with a maximum working height of 12.62 m. These modules are easy to manoeuvre and transport and are ideal for painting, installation and maintenance work.
Svelt Jolly is made of very light tubular aluminum alloy Ø 50 mm with non-slip knurled steps . Easy to assemble, this professional scaffolding is rustproof and is guaranteed for 5 years .
Each module is complete with everything needed based on the height that the module can reach. In this way the user automatically purchases everything needed for the European regulations UNIEN1004.1.2 with maximum safety. Wall anchoring is not mandatory for all modules, for the anchoring requirements of each composition see the technical table at the bottom of the page.
The main features of Svelt Jolly
- Basic dimensions 2.00 x 1.05 m
- Aluminum Structure
- Load capacity 200 kg/m² (including two people)
- Knurled Steps
- Steps: 30 cm
- Module A with 4 adjustable wheels from 0 to 30 cm + brake
- Module C with trapdoor in multilayer knurled wire mesh
- Modular - can be assembled as desired
Purchasable Compositions
| Height at floor level (H1) | Total Height (H2) | Working Height (H3) | Modules | |
| AJOLLY181N | 0.72 m | 1.81 m | 2.72 m | A + S1 |
| AJOLLY267N | 1.62 m | 2.67 m | 3.62 m | A + D + S1 |
| AJOLLY357 | 2.52 m | 3.57 m | 4.52 m | A + B + S |
| AJOLLY447 | 3.42 m | 4.47 m | 5.42 m | A + B + D + P + S |
| AJOLLY537 | 4.32 m | 5.37 m | 6.32 m | A + B + C + S |
| AJOLLY627 | 5.22 m | 6.27 m | 7.22 m | A + B + C + D + S |
| AJOLLY717 | 6.12 m | 7.17 m | 8.12 m | A + B + 2 C + S |
| AJOLLY807 | 7.02 m | 8.07 m | 9.02 m | A + B + 2 C + D + S |
| AJOLLY897N | 7.92 m | 8.97 m | 9.92 m | A + B + 2 C + E + P + S +3F |
| AJOLLY987N | 8.82 m | 9.87 m | 10.82 m | A + B + 3 C + D + S + 3F |
| AJOLLY1077N | 9.72 m | 10.77 m | 11.72 m | A + B + 3 C + E + P + S + 4F |
| AJOLLY1167N | 10.62 m | 11.67 m | 12.62 m | A + B + 3 C + E + D + P + S + 4F |
Standard equipment depending on the purchased module and the height
- Module A : h 1.81 m - 56.70 kg
composed of:- 2 backrests
- 2 diagonal crosspieces
- 2 horizontal crosspieces
- 4 wheels with brake Ø 150 mm and adjustable legs
- 1 floor with hatch
- Module B : h 1.84 m - kg 50
composed of:- 2 terminal shoulders
- 2 diagonal crosspieces
- 2 parapets
- 1 set of foot clips (4 pieces)
- Module C : h 1.80 m - 41.50 kg
- 2 intermediate shoulders
- 2 diagonal crosspieces
- 2 parapets
- 1 passageway with trapdoor
- Module D : h 0.90 - Kg 8.50
- 2 shoulders
- Module E : h 1.80 m - Kg 17
- 2 intermediate shoulders
- 2 diagonal crosspieces
- Module P:
n.1 passageway with trapdoor (without footrest), n.1 blind floor. - Module F:
kit n.4 toe clips (2 long, 2 short). - Module S/S1 :
n.4 stabilizing brackets
* In JOLLY scaffolding compliant with European standards UNIEN1004.1.2, the walkways can be used without footboards. Anchoring is not mandatory.
* If the walkways are used for working, they must be completed with the footrest kit (see Module F accessories).
* For JOLLY (Legislative Decree 81/08) all additional intermediate worktops must always be equipped with a footrest kit (module F) + 2 parapets
Watch the video
Functional specifications
Portability and Quick Assembly
This Jolly scaffolding from Svelt has dimensions suitable for passing through industrial doors. Furthermore, its modular configuration allows for easy transport even on small vans. Its components make it light, compact and easy to assemble in a few minutes without the need for tools.
Multilevel
The Svelt Jolly Module A can be set on multiple levels with a limping configuration, thanks to the possibility of adjusting the wheel legs from 0 to 30 cm.
Modular in different heights
Thanks to its modularity, this professional scaffold can be used for jobs at different heights, starting from 1.81 m up to 12.62 m.
High Flow Rate
Svelt Jolly can support a load of 200 kg/m² including two people.
Landing at altitude
Jolly scaffoldings are certified by Svelt according to Legislative Decree 81/2008 for landing on roofs and coverings. The landing system is shown in the user manual and allows the scaffolding to be raised above the roof level and one side to be kept open for safe passage in the only case where there are no other ways to access the roof.
Patented Servotech System (TJOLLYSER)
New accessory that allows the safe assembly/disassembly of the safety railings while standing on the lower level (EN1004.1). Once the railings are assembled, the operator climbs onto the upper level in complete safety, protected on all sides.
Optional Quick Anchor (AJOLLYANCORAGGIO)
It is possible to request in addition the quick and adjustable wall anchoring system. If the scaffolding is anchored, the stabilizing brackets are not mandatory but must be mounted in case of moving.
Passage Plan with Hatch
The element with trapdoor (EB) has dimensions of 1.86 mx 0.80 and weighs 25.5 kg. It is made of multilayer knurled wire mesh.
High technical quality and Made in Italy .
5 year warranty
Svelt products are guaranteed for 5 years to demonstrate their high quality and reliability

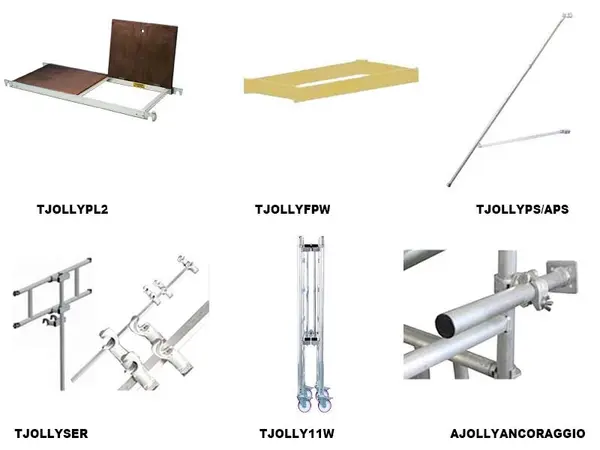

Accessories on Request
- Passageway with trapdoor (without footrest)
Module P (TJOLLYPL2) - Kit 4 Toe Clips (2 long + 2 short)
Module F (TJOLLYFPW) - 4 Stabilizer brackets
Module S (TJOLLYPS) - 4 stabilizing brackets (small for module A)
Module S1 (TJOLLYAPS) - Pre-assembled base with automatic base (quick opening/closing)
Module A (TJOLLY11W) - Safe mounting kit for railings (2 pieces)
Servotech (TJOLLYSER/2) - Additional parapet for Jolly
to Italian regulations DLGS81/08 (TJOLLY0P)
Former Technician
| Modello | AJOLLY181N | AJOLLY267N | AJOLLY357 | AJOLLY447 | AJOLLY537 | AJOLLY627 | AJOLLY7 | AJOLLY807 | AJOLLY8 | AJOLLY987 | AJOLLY1077 | AJOLLY1167 |
| Highness to the Piano m | 0.72 m | 1.62 m | 2.52 m | 3.42 m | 4.32 m | 5.22 m | 6.12 m | 7.02 m | 7.92 m | 8.82 m | 9.72 m | 10.62 m |
| Altezza Total m | 1.81 m | 2.67 m | 3.57 m | 4.47 m | 5.37 m | 6.27 m | 7.17 m | 8.07 m | 8.97 m | 9.87 m | 10.77 m | 11.67 m |
| Altezza di Lavoro m | 2.72 m | 3.62 m | 4.52 m | 5.42 m | 6.32 m | 7.22 m | 8.12 m | 9.02 m | 9.92 m | 10.82 m | 11.72 m | 12.62 m |
| Moduli | A+S1 | A+D+S1 | A+B+S | A+B+D+P+S | A+B+C+S | A+B+C+D+S | A+B+2C+S | A+B+2C+D+S | A+B+2C+D+S | A+B+3C+D+S | A+B+3C+E+P+S | A+B+4E+D+S |
| Set 4 staff (Module S) | WHEN | WHEN | SI | SI | SI | SI | SI | SI | SI | SI | SI | SI |
| Piano No. (Module P) | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 |
| Steering Kit No. (Module F) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 4 | 4 | 5 | 5 |
| Internal Use | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | D.Lgs8 |
| Use Sterno | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | D.Lgs8 | D.Lgs8 | D.Lgs8 | D.Lgs8 |
| Internal Encouragement | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | SI |
| Sternal Anchorage | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | SI | SI | SI | SI |
| Weight | 61.70 kg | 70.20 kg | 125.82 kg | 151.32 kg | 167.32 kg | 175.82 kg | 208.82 kg | 217.32 kg | 268.17 kg | 284.17 kg | 318.12 kg | 326.62 kg |
Former Technician
| Modello | AJOLLY181N | AJOLLY267N | AJOLLY357 | AJOLLY447 | AJOLLY537 | AJOLLY627 | AJOLLY7 | AJOLLY807 | AJOLLY8 | AJOLLY987 | AJOLLY1077 | AJOLLY1167 |
| Highness to the Piano m | 0.72 m | 1.62 m | 2.52 m | 3.42 m | 4.32 m | 5.22 m | 6.12 m | 7.02 m | 7.92 m | 8.82 m | 9.72 m | 10.62 m |
| Altezza Total m | 1.81 m | 2.67 m | 3.57 m | 4.47 m | 5.37 m | 6.27 m | 7.17 m | 8.07 m | 8.97 m | 9.87 m | 10.77 m | 11.67 m |
| Altezza di Lavoro m | 2.72 m | 3.62 m | 4.52 m | 5.42 m | 6.32 m | 7.22 m | 8.12 m | 9.02 m | 9.92 m | 10.82 m | 11.72 m | 12.62 m |
| Moduli | A+S1 | A+D+S1 | A+B+S | A+B+D+P+S | A+B+C+S | A+B+C+D+S | A+B+2C+S | A+B+2C+D+S | A+B+2C+D+S | A+B+3C+D+S | A+B+3C+E+P+S | A+B+4E+D+S |
| Set 4 staff (Module S) | WHEN | WHEN | SI | SI | SI | SI | SI | SI | SI | SI | SI | SI |
| Piano No. (Module P) | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 |
| Steering Kit No. (Module F) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 4 | 4 | 5 | 5 |
| Internal Use | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | D.Lgs8 |
| Use Sterno | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | D.Lgs8 | D.Lgs8 | D.Lgs8 | D.Lgs8 |
| Internal Encouragement | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | SI |
| Sternal Anchorage | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | WHEN | SI | SI | SI | SI |
| Weight | 61.70 kg | 70.20 kg | 125.82 kg | 151.32 kg | 167.32 kg | 175.82 kg | 208.82 kg | 217.32 kg | 268.17 kg | 284.17 kg | 318.12 kg | 326.62 kg |
