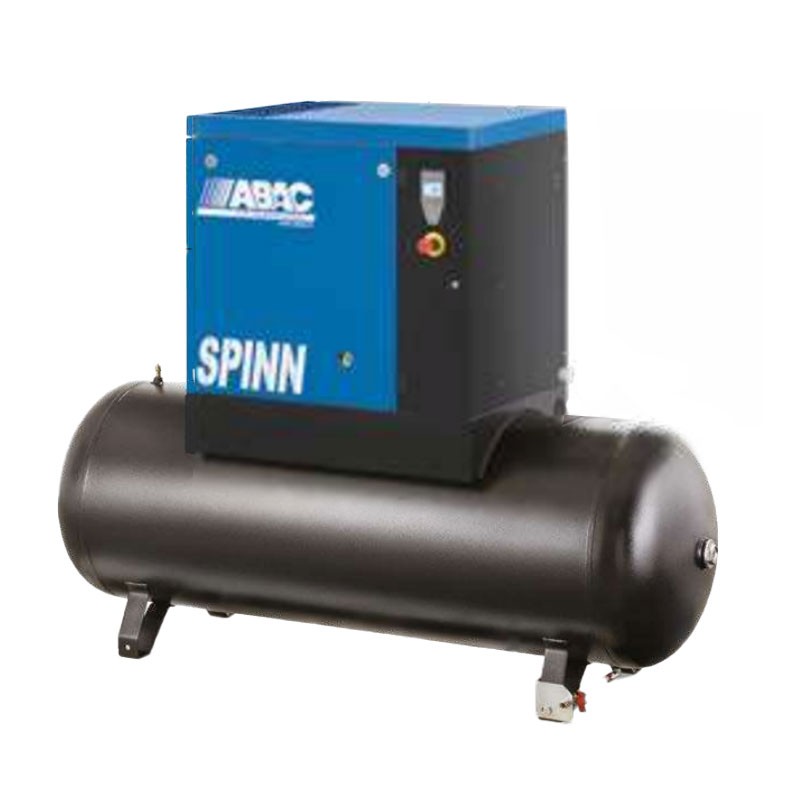

ABAC SPINN 5.5-15 kW
Three-phase screw compressor with 500 L tank

ABAC SPINN 5.5 - 15 kW - Rotary Screw Compressor with 500 L Tank

The air compressor models with 500 L tank in the Abac SPINN 5.5-15 kW range are designed for intensive professional use . These compressors are available with different powers from 7.5 HP to 20 HP selectable from the drop-down menu and it is possible to choose the version with built-in dryer or the standard one.

Easy to install and made of high quality, long-lasting materials, these compressors are of the rotary screw type with 400V three-phase connection . Ideal for intensive use, they are perfect in garages, workshops, tire shops and in all environments where there is a continuous need for compressed air. These machines are able to work continuously for long periods, have a compact structure and small footprint.

With silenced hood it ensures less noise to respect the working environment with a maximum noise level of only 71 dB(A).

The compressors of the Abac SPINN line from 5.5 to 15 kW, as well as in the 10 bar version, are also available in the 8 bar and 13 bar version on request.

Models available

• Spinn tank 500 L
• Spinn tank 500 L + dryer

Both models are available in the following versions:

• 7.5 HP (5.5 kW) - 696 L/min
• 10 HP (7.5 kW) - 996 L/min
• 15 HP (11 kW) - 1416 L/min
• 20 HP (15 kW) - 1680 L/min

Functional specifications

Abac SPINN compressors are easy to install and, thanks to the possibility of quick access to the components, allow rapid maintenance ; the possibility of easily installing them near the work area also allows a reduction in the pipe network. The Abac Spinn are built with the highest quality components and are able to achieve 30% greater efficiency than piston compressors .

It is possible to choose from a wide range of models of different power to satisfy every need and choose whether to equip the compressor with a dryer or not. The presence of the integrated dryer is perfect if there is a need to use compressed air without residual water vapor.

All also available in versions with 270 L tank or without tank.

Known by professionals and demanding private individuals for their reliability and versatility , these Abac Spinn 5.5 - 15 kW compressors are particularly loved for their low noise and notable energy savings .

These compressors are equipped with an Infologic Basic Controller digital controller, for safe and intuitive control of settings. This system allows daily configuration of settings.

The compressors of the Abac SPINN line from 5.5 to 15 kW, as well as in the 10 bar version, are also available in the 8 bar and 13 bar version on request.

Characteristics

• For intensive and continuous use
• Reduced noise level
• Ease of use and maintenance
• Immediately ready for installation
• High efficiency
• Available with dryer and integrated tank
